50bp DNA Step Ladder
Sixteen DNA Fragments of 50–800bp in 50bp Increments
- Load 5μl/lane
- Supplied at a concentration of 0.34µg/μl
- Supplied with 6X Blue/Orange Loading Dye
- Now ships at ambient temperature
- Intended for Laboratory Use (GPR) in the United States. Outside of the United States, this product is intended for research use only unless otherwise stated
Catalog Number:
Size
Catalog Number: G4521
DNA Step Ladders have defined sizes with exact incremental steps between bands. The ladders are not intended for use in quantitative analysis. The DNA fragments may be stained with ethidium bromide.

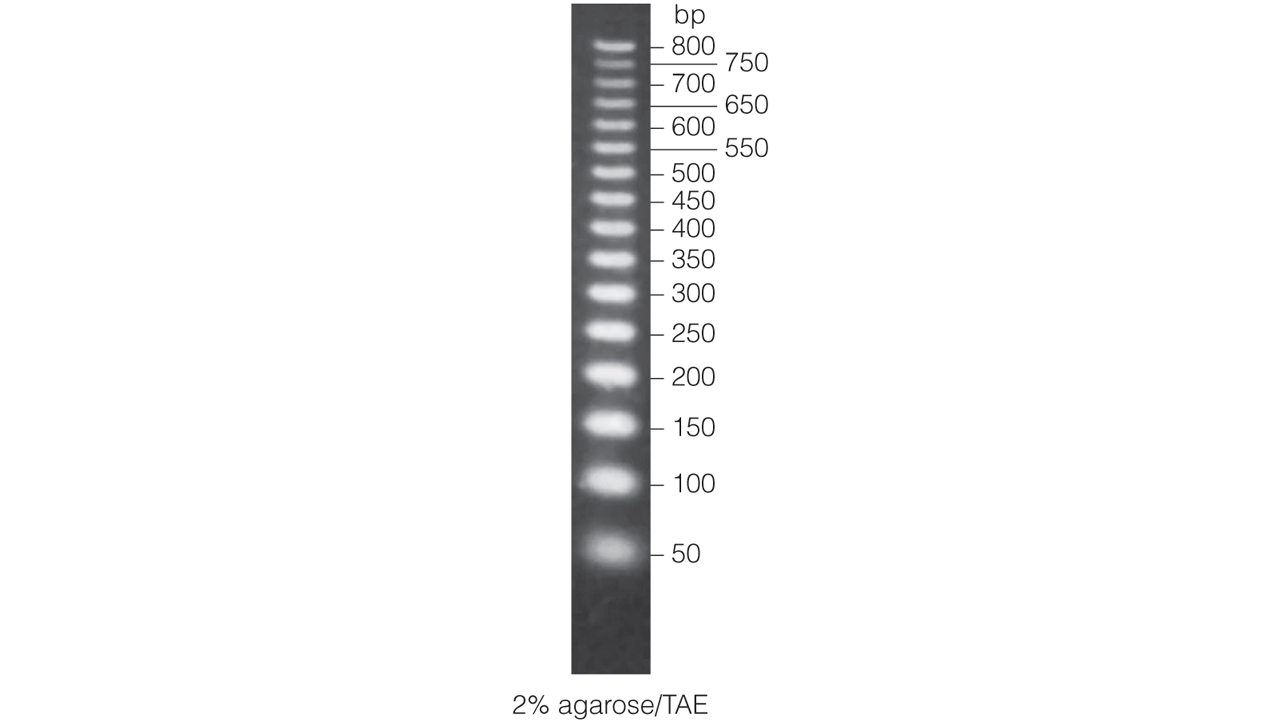

The 50bp DNA Step Ladder has 16 DNA fragments ranging from 50bp to 800bp in 50bp increments plus an 1,800bp "backbone" fragment. All bands except the 800bp band are of equal intensity; the 800bp band is ≈3 times more intense.
Storage Buffer: 10mM Tris-HCl (pH 7.5), 1mM EDTA.
Protocols
No protocols available
Specifications
Catalog Number:

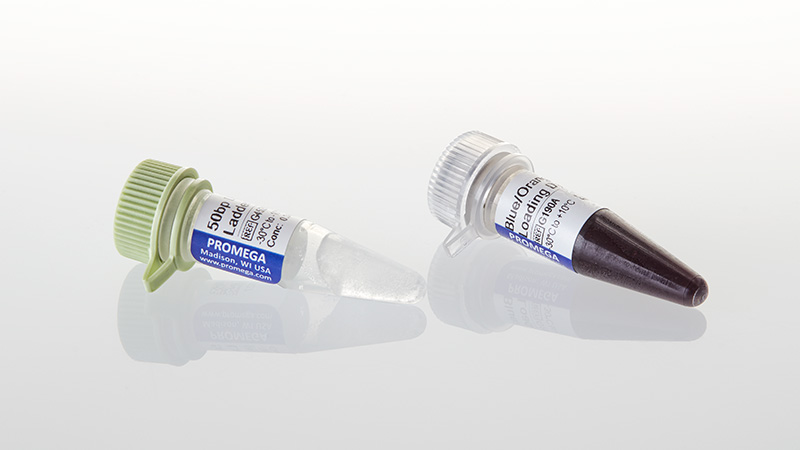

What's in the box?
| Item | Part # | Size | Concentration |
|---|---|---|---|
|
Blue/Orange 6X Loading Dye |
G190A | 1 × 1ml | |
|
50bp DNA Step Ladder |
G452A | 1 × 90μg | 0.34μg/μl |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
For Laboratory Use. Outside of the United States, this product is intended for research use only unless otherwise stated.Storage Conditions
Resources
