PowerPlex® ESX 16 and ESI 16 Fast Systems
Co-Amplification and 5-Color Detection of ENFSI-Recommended STR Loci
- Amplification and detection in <50 minutes
- Include D10S1248, D22S1045 and D2S441 as miniSTRs and D12S391 and D1S1656 as midiSTRs (do not include SE33)
- Superior sensitivity and tolerance to common inhibitors to obtain full profiles from low-level DNA samples
Catalog Number:
Choose a system
Size
Catalog Number: DC1610
Catalog Number: DC1611
Catalog Number: DC1630
Catalog Number: DC1631
Catalog Number: DC1620
Catalog Number: DC1621
Rapid Results from Degraded Samples
【PowerPlex® ESXおよびESI Systemは2016年5月より、新規蛍光色素により標識されたWEN ILS 500 Proがインターナルレーンスタンダードとして付属します。詳細はこちらをご覧ください】
PowerPlex® ESX および ESI Fast Systems はヨーロッパ各国で共有されるDNAプロファイルであるENFSI 推奨に合致しており、D3S1358, D8S1179, D18S51, D21S11, FGA, TH01, vWA, D2S441, D10S1248, D22S1045, D1S1656, D12S391, D2S1338, D16S539, D19S433, SE33 および Amelogeninの同時増幅および検出が可能です。スピードサイクリングテクノロジーにより50分以内の増幅を可能にします。
これらのキットは様々な要望を満たすためにSE33を検出できるオプションを有する複数のフォーマットよりお選びいただけます。さらに、キットには一般的な阻害剤に対する優れた耐性および高い感度を持ち、低レベルのDNAからでも完全なプロファイルが得られ、miniSTRローカスの採用により分解されたDNAサンプルでもジェノタイピングが可能です。このシステムは ABI PRISM® 310、3100、3100-Avant Genetic Analyzers、Applied Biosystems® 3130、3130xl、3500、3500xL Genetic Analyzersに対応します。
本システムに添付される最適化された新しい 5X Master Mixは50分以内に増幅が完了し、通常よりも2時間節約することができます。
- 増幅時間50分：より短い時間で結果が得られます。
- 複数のバリエーション：質の悪いサンプルからでも結果が得られます。
- ENFSI 推奨ローカス：各国でデータを共有可能
- 阻害剤に強いバッファー：困難なケースワークサンプルでも優れた結果が得られます。
- 1つのキットでデータベースおよびケースワークサンプルに対応：品質管理/在庫管理が容易
- ケースワークサンプルの分析
- データベース構築
- 父子鑑定
【Ｑ＆Ａ】PowerPlex ESX and ESI Fast Systems
Promega forensic products are manufactured in alignment with the ISO 18385 standard.This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.
PowerPlex® ESX 16 Fast System
The PowerPlex® ESX 16 Fast System is designed with the loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) as mini-STRs (<125bp; D2S441, D10S1248 and D22S1045) or midi-STRs (125–185bp; D1S1656 and D12S391).
PowerPlex® ESI 16 Fast System
The PowerPlex® ESI 16 Fast System is designed with six of the original seven European Standard Set (ESS) loci (D3S1358, D18S51, TH01, vWA, D8S1179 and the more common FGA alleles) along with D16S539 and D19S433 as smaller amplicons (<250bp), while the new loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) (D1S1656, D2S441, D10S1248, D12S391 and D22S1045) are present as larger amplicons.
Rapid Processing Solutions for PowerPlex® Systems
The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.
Which Product is Right for Me?
Take me to the Product SelectorProtocols
Complete Protocol
Quick Protocols
Specifications
Catalog Number:
選択製品の構成品内容
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 2 × 200μl | View Product | |
PowerPlex® ESX 16 Fast Allelic Ladder Mix |
DG388B | 4 × 50μl | ||
PowerPlex® ESX 16 Fast 10X Primer Pair Mix |
DK261B | 4 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 4 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 10 × 1,250μl | View Product |
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
選択製品の構成品内容
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 1 × 200μl | View Product | |
PowerPlex® ESX 16 Fast Allelic Ladder Mix |
DG388B | 1 × 50μl | ||
PowerPlex® ESX 16 Fast 10X Primer Pair Mix |
DK261B | 1 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 1 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 5 × 1,250μl | View Product |
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|

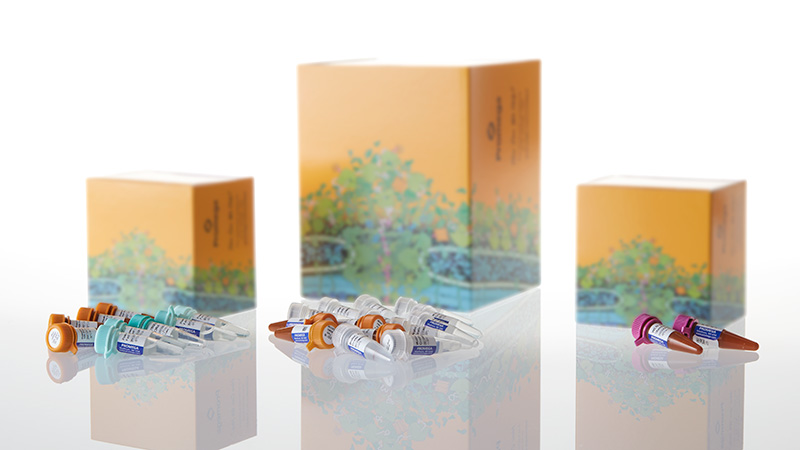

PowerPlex® ESX 16 Fast System |
DC1610 | 1 × 400 reactions |

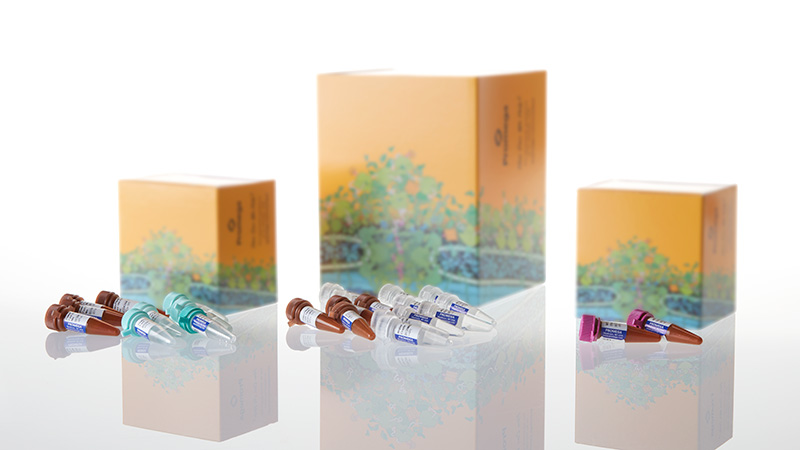

PowerPlex® ESI 16 Fast System |
DC1620 | 1 × 400 reactions |
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|

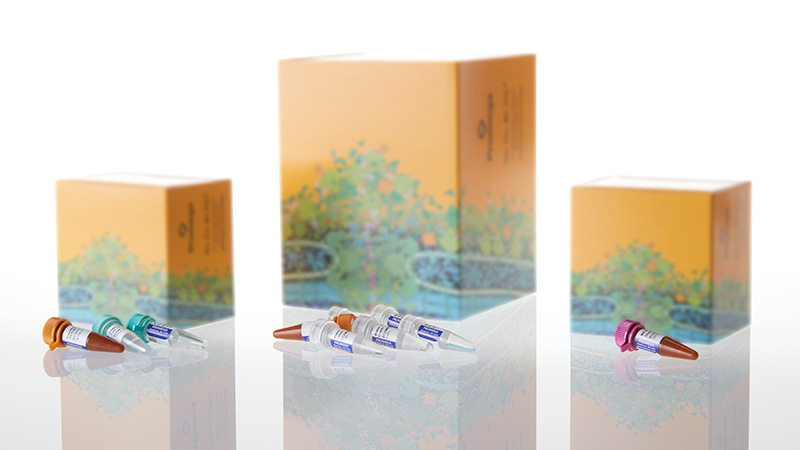

PowerPlex® ESX 16 Fast System |
DC1611 | 1 × 100 reactions |

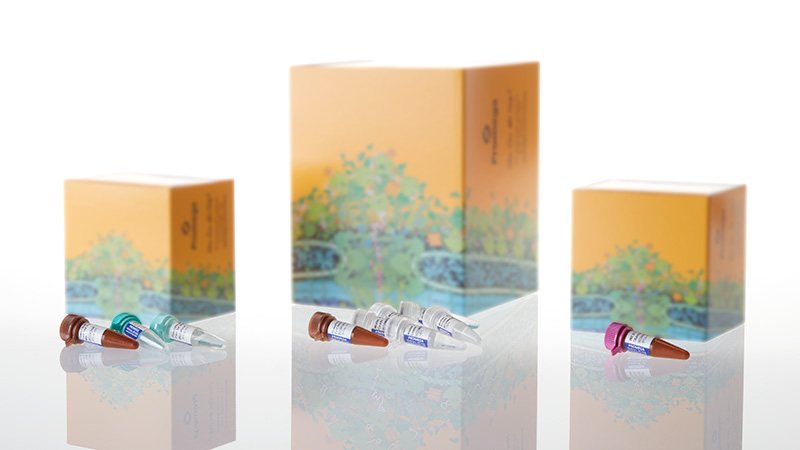

PowerPlex® ESI 16 Fast System |
DC1621 | 1 × 100 reactions |
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
選択製品の構成品内容
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 2 × 200μl | View Product | |
PowerPlex® ESI 16 Fast Allelic Ladder Mix |
DG387B | 4 × 50μl | ||
PowerPlex® ESI 16 Fast 10X Primer Pair Mix |
DK255B | 4 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 4 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 10 × 1,250μl | View Product |
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
選択製品の構成品内容
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 1 × 200μl | View Product | |
PowerPlex® ESI 16 Fast Allelic Ladder Mix |
DG387B | 1 × 50μl | ||
PowerPlex® ESI 16 Fast 10X Primer Pair Mix |
DK255B | 1 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 1 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 5 × 1,250μl | View Product |
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
