PowerPlex® ESX and ESI 17 Fast Systems

Achieve Superior Results in Less Time

【PowerPlex® ESXおよびESI Systemは2016年5月より、新規蛍光色素により標識されたWEN ILS 500 Proがインターナルレーンスタンダードとして付属します。詳細はこちらをご覧ください】

PowerPlex® ESX および ESI Fast Systems はヨーロッパ各国で共有されるDNAプロファイルであるENFSI 推奨に合致しており、D3S1358, D8S1179, D18S51, D21S11, FGA, TH01, vWA, D2S441, D10S1248, D22S1045, D1S1656, D12S391, D2S1338, D16S539, D19S433, SE33 および Amelogeninの同時増幅および検出が可能です。スピードサイクリングテクノロジーにより50分以内の増幅を可能にします。
これらのキットは様々な要望を満たすためにSE33を検出できるオプションを有する複数のフォーマットよりお選びいただけます。さらに、キットには一般的な阻害剤に対する優れた耐性および高い感度を持ち、低レベルのDNAからでも完全なプロファイルが得られ、miniSTRローカスの採用により分解されたDNAサンプルでもジェノタイピングが可能です。このシステムは ABI PRISM® 310、3100、3100-Avant Genetic Analyzers、Applied Biosystems® 3130、3130xl、3500、3500xL Genetic Analyzersに対応します。
本システムに添付される最適化された新しい 5X Master Mixは50分以内に増幅が完了し、通常よりも2時間節約することができます。

増幅時間50分：より短い時間で結果が得られます。
複数のバリエーション：質の悪いサンプルからでも結果が得られます。
ENFSI 推奨ローカス：各国でデータを共有可能
阻害剤に強いバッファー：困難なケースワークサンプルでも優れた結果が得られます。
1つのキットでデータベースおよびケースワークサンプルに対応：品質管理/在庫管理が容易

ケースワークサンプルの分析
データベース構築
父子鑑定

【Ｑ＆Ａ】PowerPlex ESX and ESI Fast Systems

Promega forensic products are manufactured in alignment with the ISO 18385 standard.This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.

PowerPlex® ESX 17 Fast System

The PowerPlex® ESX 17 Fast System amplifies the loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) as mini-STRs (<125bp; D2S441, D10S1248 and D22S1045) or midi-STRs (125–185bp; D1S1656 and D12S391).

13658TA-W-2 — 2800M Control DNA (0.5ng) was amplified with the PowerPlex® ESX 17 Fast System for 30 cycles. Amplification products were separated using an Applied Biosystems® 3130 Genetic Analyzer (3kV, 5-second injection).

PowerPlex® ESI 17 Fast System

The PowerPlex® ESI 17 Fast System is designed with six of the original seven European Standard Set (ESS) loci (D3S1358, D18S51, TH01, vWA, D8S1179 and the more common FGA alleles) along with D16S539 and D19S433 as smaller amplicons (<250bp), while the loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) (D1S1656, D2S441, D10S1248, D12S391 and D22S1045) are present as larger amplicons.

13660TA-W — 2800M Control DNA (0.5ng) was amplified with the PowerPlex® ESI 17 Fast System for 30 cycles. Amplification products were separated using an Applied Biosystems® 3130 Genetic Analyzer (3kV, 5-second injection).

DNA Amount	PowerPlex® ESI 17 Fast System	PowerPlex® ESI 17 Pro System	PowerPlex® ESX 17 Fast System	PowerPlex® ESX 17 System
500pg	100%	100%	100%	100%
100pg	100%	100%	100%	100%
60pg	100%	99%	100%	100%
30pg	85%	76%	98%	90%

Perform Direct Amplification from a Variety of Sample Types

The PowerPlex® ESI and ESX Fast Systems allow direct amplification from FTA® card punches as well as pretreated nonFTA cards and commonly used swabs to streamline workflow and expand sample throughput.

Blood Sample on FTA® Card

11517MA-W — Direct amplification of one 1.2mm punch from a blood sample on an FTA® card using the PowerPlex® ESI 17 Fast System and the recommended protocol. Amplified products were separated using an Applied Biosystems® 3130xl Genetic Analyzer (3kV, 5-second injection).

Buccal Sample on FTA® Card

11518MA-W — Direct amplification of two 1.2mm punches from a buccal sample on an FTA® card using the PowerPlex® ESI 17 Fast System and the recommended protocol. Amplified products were separated using an Applied Biosystems® 3130xl Genetic Analyzer (3kV, 5-second injection).

Buccal Swab with SwabSolution™ Reagent

11519MA-W — A buccal swab was pretreated with SwabSolution™ Reagent. Following incubation, 2µl of extract was added to the PCR amplification mix and amplified using the PowerPlex® ESI 17 Fast System and the recommended protocol. Amplified products were separated using an Applied Biosystems® 3130xl Genetic Analyzer (3kV, 5-second injection).

Buccal Sample with PunchSolution™ Reagent

11520MA-W — A single 1.2mm punch from a buccal sample collected using a Bode Buccal DNA Collector™ device was pretreated with PunchSolution™ reagent, then amplified using the PowerPlex® ESI 17 Fast System and the recommended protocol. Amplified products were separated using an Applied Biosystems® 3130xl Genetic Analyzer (3kV, 5-second injection).

Compare with NGM Detect™ and SElect™ Kits

PowerPlex 17 Fast Comparison with NGM Detect and Select Kits

Rapid Processing Solutions for PowerPlex® Systems

The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.

Learn more

Which Product is Right for Me?

Take me to the Product Selector

プロトコール

Complete Protocol

PowerPlex® ESX 17 Fast System for Use on the Applied Biosystems® Genetic Analyzers Technical ManualPDF (6891 KB) – English

PowerPlex® ESX 17 Fast System for Use on the Spectrum CE System Technical ManualPDF (5148 KB) – English

PowerPlex® ESX 17 Fast System for Use on the Spectrum Compact CE System Technical ManualPDF (7917 KB) – English

PowerPlex® ESI 17 Fast System for Use on the Applied Biosystems® Genetic Analyzers Technical ManualPDF (7173 KB) – English

PowerPlex® ESI 17 Fast System for Use on the Spectrum CE System Technical ManualPDF (4660 KB) – English

PowerPlex® ESI 17 Fast System for Use on the Spectrum Compact CE System Technical ManualPDF (18971 KB) – English

Quick Protocols

Use of the PowerPlex ESX and ESI Fast Systems to Amplify Extracted DNA FB153PDF (499 KB) – English

Use of the PowerPlex ESX and ESI Fast Systems to Amplify DNA from Swabs FB154PDF (501 KB) – English

Use of PowerPlex ESX and ESI Fast Systems to Amplify DNA from Storage Card Punches FB155PDF (502 KB) – English

選択製品の構成品内容

Item	Part #	Size	Concentration	Available Separately
PowerPlex® ESI/ESX Fast 5X Master Mix	DP113A	4 × 500μl
PowerPlex® ESX 17 Fast 10X Primer Pair Mix	DK245B	4 × 250μl
2800M Control DNA	DD710A	1 × 25μl	10ng/μl	View Product
Water, Amplification Grade	DW099A	10 × 1,250μl		View Product
PowerPlex® ESX 17 Fast Allelic Ladder Mix	DG385B	4 × 50μl
WEN Internal Lane Standard 500 ESS	DG510A	2 × 200μl		View Product

SDS

Search for SDS

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

パテントおよび免責条項

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

選択製品の構成品内容

Item	Part #	Size	Concentration	Available Separately
PowerPlex® ESI/ESX Fast 5X Master Mix	DP113A	1 × 500μl
PowerPlex® ESX 17 Fast 10X Primer Pair Mix	DK245B	1 × 250μl
2800M Control DNA	DD710A	1 × 25μl	10ng/μl	View Product
Water, Amplification Grade	DW099A	5 × 1,250μl		View Product
PowerPlex® ESX 17 Fast Allelic Ladder Mix	DG385B	1 × 50μl
WEN Internal Lane Standard 500 ESS	DG510A	1 × 200μl		View Product

SDS

Search for SDS

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

パテントおよび免責条項

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

選択製品の構成品内容

Item	Part #	Size	Concentration	Available Separately
PowerPlex® ESI/ESX Fast 5X Master Mix	DP113A	4 × 500μl
PowerPlex® ESI 17 Fast 10X Primer Pair Mix	DK244B	4 × 250μl
2800M Control DNA	DD710A	1 × 25μl	10ng/μl	View Product
Water, Amplification Grade	DW099A	10 × 1,250μl		View Product
PowerPlex® ESI 17 Fast Allelic Ladder Mix	DG386B	4 × 50μl
WEN Internal Lane Standard 500 ESS	DG510A	2 × 200μl		View Product

SDS

Search for SDS

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

パテントおよび免責条項

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

選択製品の構成品内容

Item	Part #	Size	Concentration	Available Separately
PowerPlex® ESI/ESX Fast 5X Master Mix	DP113A	1 × 500μl
PowerPlex® ESI 17 Fast 10X Primer Pair Mix	DK244B	1 × 250μl
2800M Control DNA	DD710A	1 × 25μl	10ng/μl	View Product
Water, Amplification Grade	DW099A	5 × 1,250μl		View Product
PowerPlex® ESI 17 Fast Allelic Ladder Mix	DG386B	1 × 50μl
WEN Internal Lane Standard 500 ESS	DG510A	1 × 200μl		View Product

SDS

Search for SDS

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

パテントおよび免責条項

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

選択製品の構成品内容

Item	Part #	Size

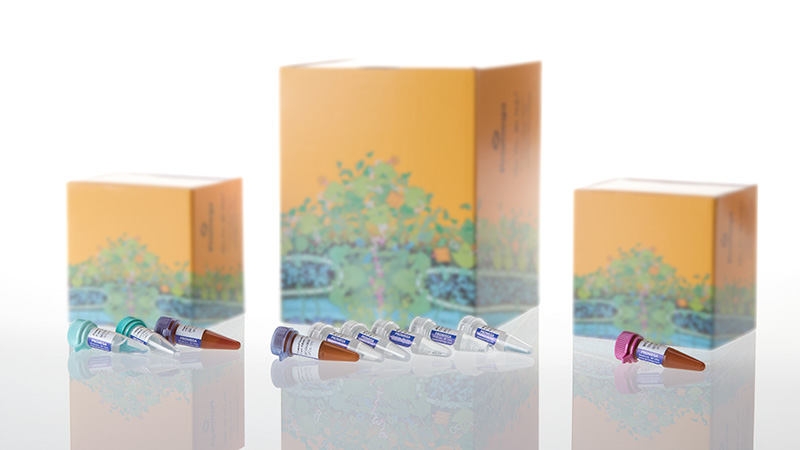

PowerPlex® ESX 17 Fast System	DC1711	1 × 100 reactions

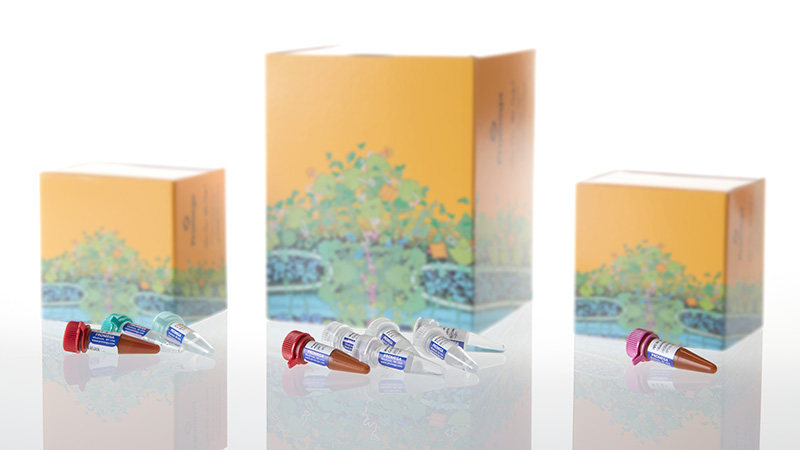

PowerPlex® ESI 17 Fast System	DC1721	1 × 100 reactions

SDS

Search for SDS

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

パテントおよび免責条項

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

選択製品の構成品内容

Item	Part #	Size

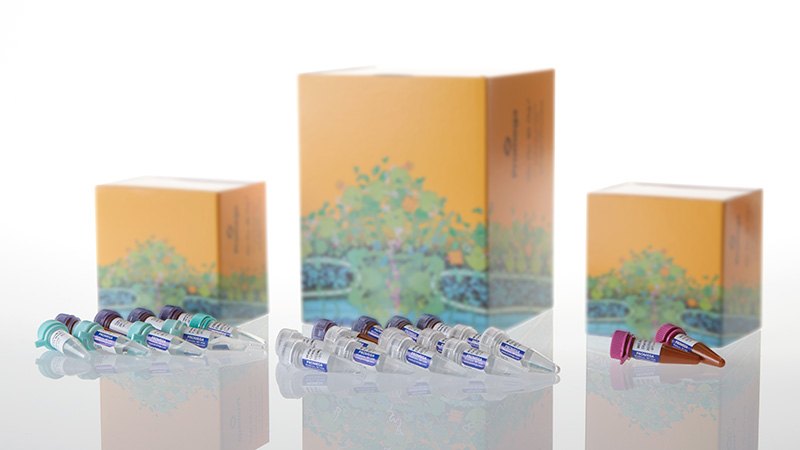

PowerPlex® ESX 17 Fast System	DC1710	1 × 400 reactions

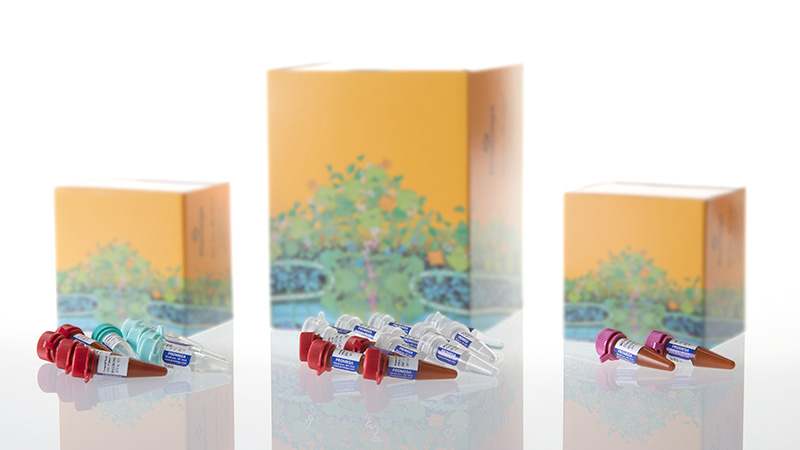

PowerPlex® ESI 17 Fast System	DC1720	1 × 400 reactions

SDS

Search for SDS

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

パテントおよび免責条項

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

技術資料

PowerPlex® ESX 17 and ESI 17 Fast Systems

Part Numbers: DC1710, DC1711, DC1720, DC1721, DC1731, DC1730
