Lumit® VEGF-A (Human) Immunoassay
ELISA Alternative for VEGF-A Detection
- Cell-based assay with fast add-and-read protocol
- Luminescent detection with any plate-reading luminometer
- Scalable to 96- or 384- well plates, protocols included
- Pack sizes show assay number for 96-well plates
Catalog Number:
Choose a product
Size
Catalog Number: W1880
Catalog Number: W1881
Catalog Number: W1882
Catalog Number: W188A-C
リン酸化または総タンパク質の高速定量
Lumit™ Immunoassay Cellular System は、細胞溶解液に含まれる標的分子を直接測定可能な洗浄のいらない生物発光イムノアッセイです。このアッセイは、適切な一次抗体（お客様提供）が利用可能であれば、あらゆるリン酸化タンパク質、総タンパク質あるいは低分子を検出できるように適合させることができます。
ご参考いただくために、注目度の高いターゲットについて市販の一次抗体を用いて Lumit™ イムノアッセイの評価を行いました。以下のアプリケーションノートには、試用した各一次抗体用のプロトコル、サンプルデータ、最適化条件、および注文情報が記載されされています。
How the Lumit® VEGF-A Immunoassay Works
Primary antibodies to VEGF-A were selected for their specific and sensitive detection and labeled with the LgBiT and SmBiT subunits of NanoBiT® Luciferase. In the presence of VEGF-A, the subunits come together to form an active luciferase enzyme. Addition of optimized substrate generates a bright luminescent signal proportional to VEGF-A levels. The assay recognizes human VEGF-A, but not mouse or rat VEGF-A. It is specific for VEGF-A (121, 165 and 183) and does not cross-react with VEGF-B, -C and -D family members.
Avoid Tedious Wash Steps with Simple One-Plate Protocol
Lumit™ イムノアッセイ vs. ウェスタンブロッティング
|
Specification |
Lumit® VEGF-A Immunoassay |
|
|
Dynamic Range |
17.3–7,500pg/ml |
|
|
Limit of Detection |
4.8pg/ml (3 SD above background) |
|
|
Minimal Detectable Dose (MDD) |
3.6pg/ml (2 SD above background) |
|
|
Assay Time |
70 minutes |
|
|
Sample Type |
Cell culture supernatants |
|
SD=Standard Deviation
High-Throughput Screening Applications
Optimizing the Lumit® IL-6 Immunoassay for High-Throughput Drug Screening
In this webinar, we share key considerations for scaling Lumit® Immunoassays from a single 96-well plate to many 364-well plates and offer tips for optimizing Lumit® Immunoassays for HTS applications. You will also hear Galapagos scientist Dr. Nick Verstraeten share how his team used the Lumit® IL-6 Immunoassay in a screening campaign for antiviral drugs.
Lumit® Cytokine Assay Automation for High-Throughput Screening
In this poster, see miniaturization and automation data for Lumit® cytokine assays.
Reproducible Detection of VEGF-A Released from Human Epithelial Cells
Human A549 epithelial cells (20,000/well) were cultured in 96-well plates, and medium was refreshed at different timepoints to track VEGF-A accumulation over two days. After incubation, the Lumit® VEGF-A Immunoassay was used to quantitate VEGF-A in the media.
For a biotech that understands time is of significant value, the Lumit® Immunoassays are an essential way for us to gather reliable data fast so that we can reach conclusions and make decisions sooner.
Jonathan Chow, Principal Scientist, Corner Therapeutics
Protocols
Specifications
Catalog Number:
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Lumit® Detection Substrate B |
VB405A | 1 × 160μl |
Lumit® Detection Buffer B |
VB406A | 1 × 3.2ml |
Anti-hVEGF-A mAb-SmBiT, 500X |
W189A | 1 × 30μl |
Anti-hVEGF-A mAb-LgBiT, 500X |
W190A | 1 × 30μl |

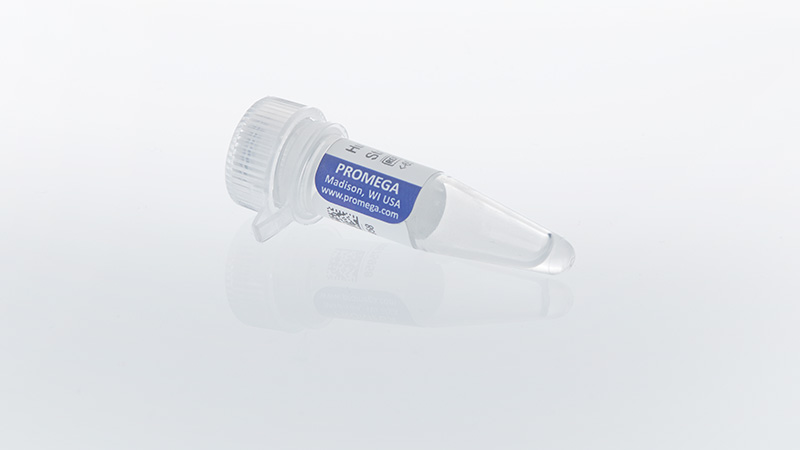

Human VEGF-A Standard |
W188A | 1 × 25μl |
U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.
U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Lumit® Detection Substrate B |
VB405B | 1 × 1.25ml |
Lumit® Detection Buffer B |
VB406B | 1 × 25ml |
Anti-hVEGF-A mAb-SmBiT, 500X |
W189B | 1 × 300μl |
Anti-hVEGF-A mAb-LgBiT, 500X |
W190B | 1 × 300μl |
Human VEGF-A Standard |
W188A | 1 × 25μl |
U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.
U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Lumit® Detection Substrate B |
VB405A | 5 × 160μl |
Lumit® Detection Buffer B |
VB406A | 5 × 3.2ml |
Anti-hVEGF-A mAb-SmBiT, 500X |
W189A | 5 × 30μl |
Anti-hVEGF-A mAb-LgBiT, 500X |
W190A | 5 × 30μl |
Human VEGF-A Standard |
W188A | 1 × 25μl |
U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.
U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Human VEGF-A Standard |
W188A | 1 × 25μl |
