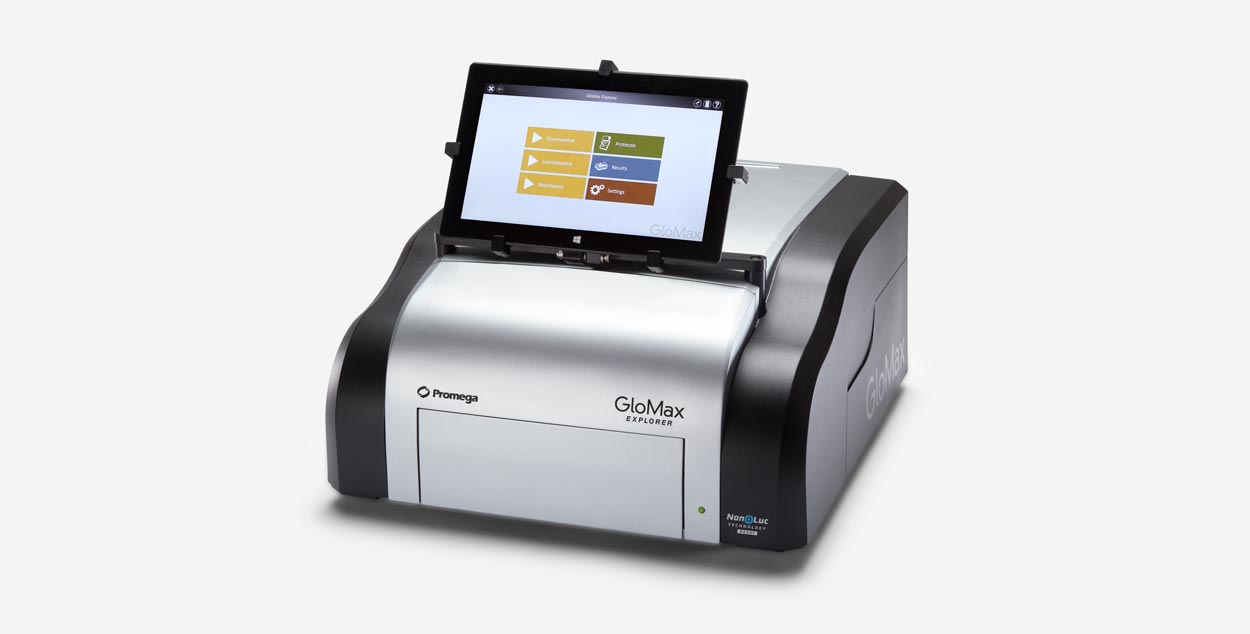

Instrument Specifications
| Detection Modes |
Luminescence, Fluorescence Intensity, Visible Absorbance |
| Sample Format |
6-, 12-, 24-, 48-, 96- and 384-well plates |
| Tablet PC |
Windows® 8.1 or 10 Tablet PC with USB connection to instrument |
| Read Speed |
96-well plate: less than 1 minute; 384-well plate: less than 3 minutes |

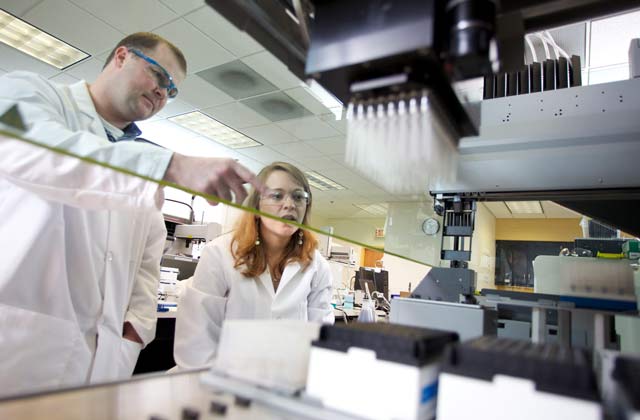

| Automation Compatibility |
Hardware and software accessible to third-party hardware/software control, including LIMS. |
| Dimensions |
18.5in (46.9cm) width
19.5in (46.5cm) depth
10in (25.4cm) height without Tablet and PC mounted
16in (35.5cm) height with Tablet and PC mounted
|
| Weight |
Approximately 60lb (27kg) |
| Power Requirements |
120VA, 50/60HZ |
| Warranty |
1-year parts and labor warranty included |
| Regulatory Compliance |
For Research Use Only. Not for use in Diagnostic Procedures |
Luminescence Module Specifications
| Detector |
Top-reading, head-on photon counting photomultiplier tube (PMT) |
| Wavelength Range |
350–700nm |
| Detection Limit |
3 × 10–21 moles of luciferase |
| Linear Dynamic Range |
9 logs |
| Cross-talk |
Less than 3 × 10–5 (white, 96-well plate, Corning 3912) |
Fluorescence Module Specifications
| Detector |
PIN-photodiode |
| Light Source |
Wavelength-matched LED |
| Read Position |
Top reading |
| Wavelengths selection |
Filter module with 5 standard excitation and emission filters. Empty filter positions are available for custom excitation and emission wavelengths. |
| Wavelengths included |
UV (Ex: 365nm, Em: 415–445nm) Blue (Ex: 475nm, Em: 500–550nm) Green (Ex: 520nm, Em: 580–640nm) Red (Ex: 627nm, Em: 660–720nm) AFC (Ex: 405nm, Em: 495–505nm) |
| Detection Limit |
2fmol fluorescein/200µl |
| Linear Dynamic Range |
>6 logs (assay-dependent) |
Visible Absorbance Module Specifications (Cat.# GM3500 only)
| Detector |
Top-reading, head-on photon counting photomultiplier tube (PMT) |
| Light Source |
Xenon flash lamp |
| Spectra Range |
385–600nm |
| Filter Wheel |
5 absorbance filters included |
| Wavelengths included |
405, 450, 490, 560 and 600nm 10nm band pass |
| Detection Limit |
0.1 O.D. |
| Dynamic Range |
0–4.0 O.D. |
Injector System Specifications
| Number of injectors (optional) |
Two injectors |
| Dispense Volume Range |
5–200µl in 1µl increments |
| Plate Compatibility |
6-, 12-, 24-, 48- and 96-well plates |
| Injection Speed |
20–500µl per second |
| Waste Collection Tray Volume |
Approximately 50ml |
| Void Volume |
600µl |
Heating System Specifications
| Temperature Range |
Ambient to 45°C |
Shaker System Specifications
| Shaking Pattern |
Linear or orbital patterns |
| Shaking Intensity |
100–500 cycles/minute |
PC Requirements
| Operating System |
Windows® 8.1 or 10 Professional version, 64-bit, with USB connection to instrument |
| RAM |
4GB |
| Disk Space |
64GB |
| Other Requirements |
Microsoft.NET 4.6.1 Framework or newer (full version) |
