HaloTag® Ligand Building Blocks
Enables any Reporter, Protein or Nucleic Acid with Specified Functional Groups to be used with the HaloTag® Protein
- Image live or fixed mammalian cells expressing HaloTag® protein or protein fusions
- Analyze post-translational modification
- Isolate proteins and protein complexes
Catalog Number:
Choose a Ligand
Size
Catalog Number: P6711
Catalog Number: P6741
Catalog Number: P1691
Catalog Number: P6751
HaloTag® Ligand Building Blockは蛍光標識、アフィニティータグ、固相表面への吸着など様々な機能をもたらします。HaloTag®とリガンドとの共有結合は通常の生理条件下で迅速に形成され、特異性が高く、 実質的に不可逆性です。HaloTag® Fluorescent LigandはHaloTag®が反応するクロロアルカン基を他の化合物や化学基を結合した表面に適用することができ、アプリケーションの可能性が大きく広がります。
The HaloTag® Amine (O4) Ligandは1つのエチレングリコールリピート (O4)の両端にクロロアルカンおよび反応性アミノ基を有します。HaloTag® Amine (04) Ligandは活性化したカルボン酸、ハロゲン化スルホニル、イソシアネートを含む様々なレポーターグループ、タンパク質あるいは核酸の誘導体を結合させることができます（図を参照）。活性化したカルボン酸の例として、スクシンイミジルエステル、STPエステル、酸ハロゲン化物、TFPエステルなどがあります。
HaloTag® Amine (O2) Ligandは1つのエチレングリコールリピート (O2)の両端にクロロアルカンおよび反応性アミノ基を有します。HaloTag® Amine (O2) Ligandは活性化したカルボン酸、ハロゲン化スルホニル、イソシアネートを含む様々なレポーターグループ、タンパク質あるいは核酸の誘導体を結合させることができます。活性化したカルボン酸の例として、スクシンイミジルエステル（図を参照）、STPエステル、酸ハロゲン化物、TFPエステルなどがあります。
HaloTag® Iodoacetamide (O4)はエチレングリコールリピート (O4) の両端にクロロアルカンおよび反応性ヨードアセトアミド基を含みます。HaloTag® Iodoacetamide(O4) Ligandは、小さな有機化合物、ペプチド、タンパク質などスルフヒドリル基を含む分子と迅速に反応させるためにデザインされています（図を参照）。
HaloTag® Succinimidyl Ester (O4) Ligandは3つのエチレングリコールリピート (O4)の両端にクロロアルカンおよび反応性スクシニミジルエステル（SE）基を有しています。HaloTag® Succinimidyl Ester (O4) Ligandは、安定なアミド結合を形成するアミンを含む様々なレポーターグループ、タンパク質あるいは核酸の誘導体を結合させることができます（図を参照）。
HaloTag® Succinimidyl Ester (O2) Ligandは1つのエチレングリコールリピート (O2)の両端にアルキルクロライドおよび反応性スクシニミジルエステル（SE）基を有しています。HaloTag® Succinimidyl Ester (O2) Ligandは、安定なアミド結合を形成するアミンを含む様々なレポーターグループ、タンパク質あるいは核酸の誘導体を結合させることができます（図を参照）。
さらにお知りになりたい方は、プロトコール&ガイド（英語）をご覧ください。
【ライセンス】HaloTagシリーズ
【Ｑ＆Ａ】HaloTag.
- Hermanson, G.T. (1996) In: Bioconjugate Techniques, Academic Press, San Diego, CA, 139–40.
- Gretch, D.R., Suter, M. and Stinski, M.F. (1987) Anal. Biochem. 163, 270–77.
- Duthie, R.S. et al. (2002) Bioconjugate Chem. 13, 699–706.
- Hermanson, G.T. (1996) In: Bioconjugate Techniques, Academic Press, San Diego, CA, 137–46.
- Gee, K.R. et al. (1999) Tetrahedron Letters 40, 1471–4.
- Adamczyk, M. et al. (1997) Bioconjugate Chem. 8, 253–5.
- Hermanson, G.T. (1996) In: Bioconjugate Techniques, Academic Press, San Diego, CA, 146–8.
- Chen, J. and Selvin, P.R. (1999) Bioconjugate Chem. 10, 311–5.
- Ge, P. and Selvin, P.R. (2003) Bioconjugate Chem. 14, 870–76.
- Krokhin, O.V. et al. (2003) Biochemistry 42, 12950–59.
- Hermanson, G.T. (1996) In: Bioconjugate Techniques, Academic Press, San Diego, CA, 146–52.

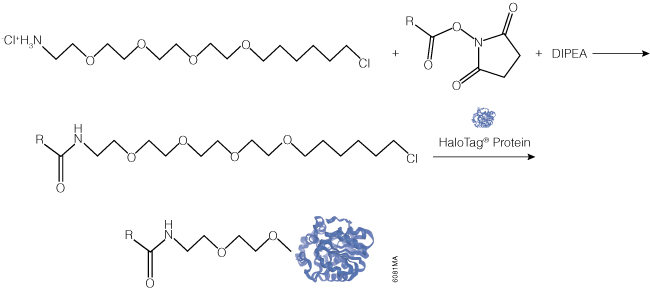

Example reaction with HaloTag® Amine (O4) Ligand.
Protocols
Complete Protocol
Specifications
Catalog Number:
SDS
Search for SDS分析証明書
使用制限
For Research Use Only. Not for Use in Diagnostic Procedures.保存条件
See Protocol for detailed storage recommendations.
