HaloTag® Protein Purification System
Enhanced Expression and Solubility of Recombinant Proteins with HaloTag® Ligands
- Covalent, efficient and specific capture of your protein of interest
- Overcome limitations (i.e., poor capture of proteins expressed at low levels, protein loss during washing) associated with affinity tags
- Sample size is available (choose Cat.# G6270)
Catalog Number:
Size
Catalog Number: G6280
Catalog Number: G6270
Enhanced Expression and Solubility of Purified Protein with Novel Tag
HaloTag® Protein Purification Systemは、大腸菌などで発現させる組換えタンパク質の発現量および可溶性を増加させる新規なタグであるHaloTag®の融合タンパク質の精製用にデザ インされています。 HaloTag®テクノロジーでは、目的の タンパク質を効率的、特異的に捕らえ、共有結合により捕捉することができます。HaloTag®タンパク質は 34kDa のヒドロラーゼ変異体で、担体表面に固定されたクロロアルカン-リガンドを介してHaloLink™ Resinに共有結合します。TEV プロテアーゼを用いることでHaloLink™ Resinより標的タンパク質を切り離すことができます。TEV プロテアーゼのN末端にはHQタグ が付加されているのでHisLink™ Resinを用いて容易にプロテアーゼを除去することができます。HaloTag®タンパク質をコードし、大腸菌での発現に適したベクターは、 pFN18A HaloTag® T7 Flexi® Vector（Cat.# G2751）および pFN18K HaloTag® T7 Flexi® Vector（Cat.# G2681）です（キットには付属しません）。
HaloLink®テクノロジーは迅速、便利にHaloTag®融合タンパク質の発現を確認でき、同様にHaloTag® TMR Ligandで蛍光標識した後SDS-PAGEを行うことでHaloLink™ Resinへの固定化効率もモニターできます。ガイドライン： HaloLink™ Resin Technical Manual #TM250、HaloLink™ Protein Array Technical Manual #TM310、HaloCHIP™ System Technical Manual #TM075.
- Hisタグ、GSTタグ、MBPタグよりも優れたタンパク質収量、純度、活性：HaloTag®融合タンパク質がHaloLink™ Resinにより特異的に捕らえられ共有結合
- 大腸菌における発現量および溶解性が向上：HaloTag®タンパク質がタンパク質発現を増進し、可溶性が2～20倍向上
- TEV ProteaseによりHaloTag®を切除した目的タンパク質を効率的に精製：HaloTag®と目的タンパク質の間のポリペプチドをTEV Proteaseが認識、切断後のHaloTag®はレジンに共有結合で捕捉されたまま
- 簡便：すべての精製ステップが1種類のバッファーで完結。下流のアプリケーションにも適応するバッファー
- 蛍光HaloTag®リガンドでタンパク質の発現レベルを簡単にIn-Gel検出、定量：HaloTag®タンパク質とリガンドの結合は安定なため、SDSサンプルバッファーでボイルした後にSDS-PAGEに供することが可能
- 大腸菌で発現させたHaloTag®融合タンパク質の精製、特に発現が困難なタンパク質の精製
- 哺乳動物細胞やセルフリーシステムで発現させたHaloTag®融合タンパク質の精製
【ライセンス】HaloTagシリーズ
【Ｑ＆Ａ】HaloTag Protein Purification System

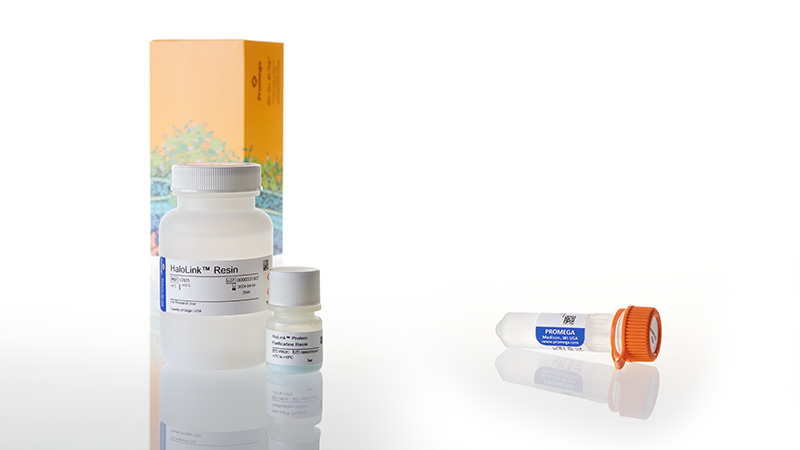

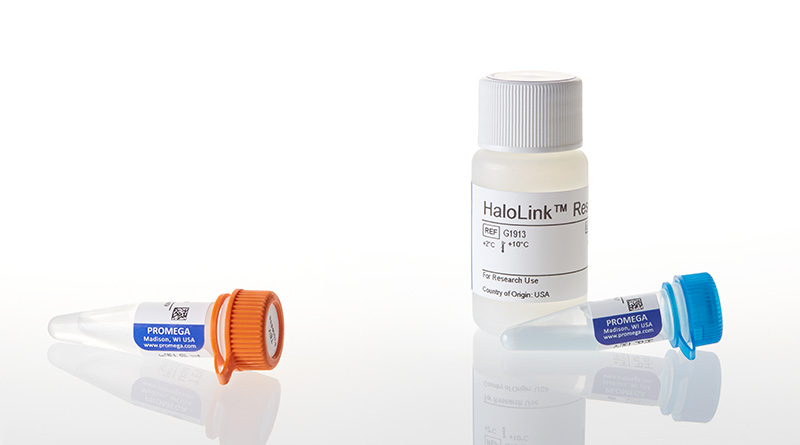

カタログ番号G6280は25% HaloLink™ Resin懸濁液が100mlと、TEV Protease、HisLink™ Resinを含みます。カタログ番号G6270は25% HaloLink™ Resin懸濁液が10mlと、TEV Protease、HisLink™ Resinを含みます。
Schematic of protein purification with HaloTag® fusion tagging.
Use of HaloTag® protein improved yields compared to yields from other tags.
Protocols
Specifications
Catalog Number:
選択製品の構成品内容
| Item | Part # | Size | Available Separately |
|---|---|---|---|
TEV Protease for use with HisLink™ Resin |
V109B | 1 × 1.6ml | |
|
HisLink™ Protein Purification Resin |
V882C | 1 × 5ml | View Product |
|
HaloLink™ Resin |
G1915 | 1 × 25ml |
SDS
Search for SDS分析証明書
使用制限
For Research Use Only. Not for Use in Diagnostic Procedures.保存条件
See Protocol for detailed storage recommendations.
BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.
Researcher may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. With respect to any uses outside this label license, including any commercial, diagnostic, therapeutic or prophylactic uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH REGARDS TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.
U.S. Pat. Nos. 7,112,552 and 7,354,750.
選択製品の構成品内容
| Item | Part # | Size | Available Separately |
|---|---|---|---|
TEV Protease for use with HisLink™ Resin |
V109A | 1 × 200μl | |
|
HisLink™ Protein Purification Resin |
V882D | 1 × 0.5ml | View Product |
|
HaloLink™ Resin |
G1913 | 1 × 2.5ml |
SDS
Search for SDS分析証明書
使用制限
For Research Use Only. Not for Use in Diagnostic Procedures.保存条件
See Protocol for detailed storage recommendations.
BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.
Researcher may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. With respect to any uses outside this label license, including any commercial, diagnostic, therapeutic or prophylactic uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH REGARDS TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.
U.S. Pat. Nos. 7,112,552 and 7,354,750.
