Membrane VEGF Target Cells
Assess the Mechanism of Action of Biologics Designed to Affect VEGF Signaling
- Prequalified according to ICH guidelines
- 96- and 384-well plate formats
- No primary cell culture required
- Supplied in convenient thaw-and-use format; also available in cell propagation model (CPM) format
Catalog Number:
Choose a Product Format
Size
Catalog Number: J3351
Catalog Number: J3355
Catalog Number: J3342
エフェクター機能と抗体結合親和性の測定
血管内皮増殖因子（VEGF）は、上皮細胞、腫瘍細胞、マクロファージなどから分泌される重要なシグナル伝達タンパク質です。VEGFは、血管新生の促進、血管透過性の増大、腫瘍の浸潤と生存の促進、制御性T細胞の抗腫瘍反応の抑制など、多くの機能を有しています。一部の VEGFアイソフォームは膜結合型（mVEGF）であるため、VEGFを 標的とした抗体のFcエフェクター機能、特に抗体依存性細胞媒介性細胞傷害（ADCC）や補体依存性細胞傷害（CDC）を誘導する可能性を明らかにする必要があります。しかし、このような研究は、mVEGFを発現するモデル細胞がないために妨げられているのが現状です。
Membrane VEGF Target Cells は、VEGFを安定的に発現するように遺伝子操作された細胞株で、切断抵抗性によりVEGFの表面発現を強化しています。Membrane VEGF Target Cells は、抗VEGFブロッカーのADCCやCDCなどのエフェクター機能を測定するアッセイにおいて、標的細胞として使用できるように設計されています。また、mVEGFに対する抗体の結合親和性の測定にも使用できます。
Assay Components

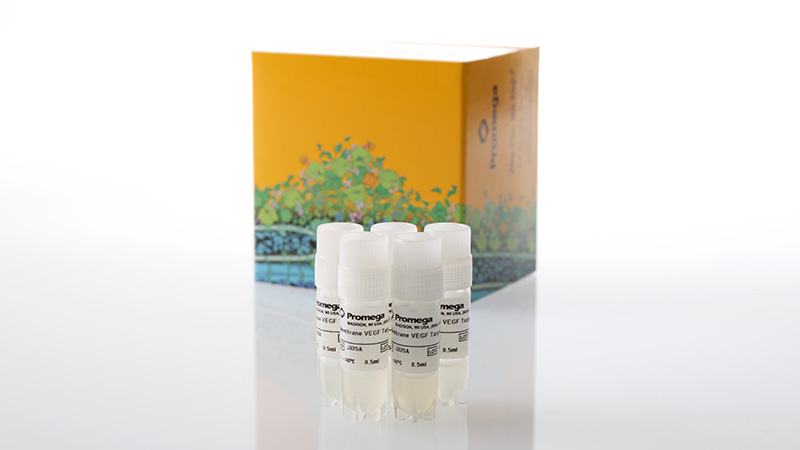

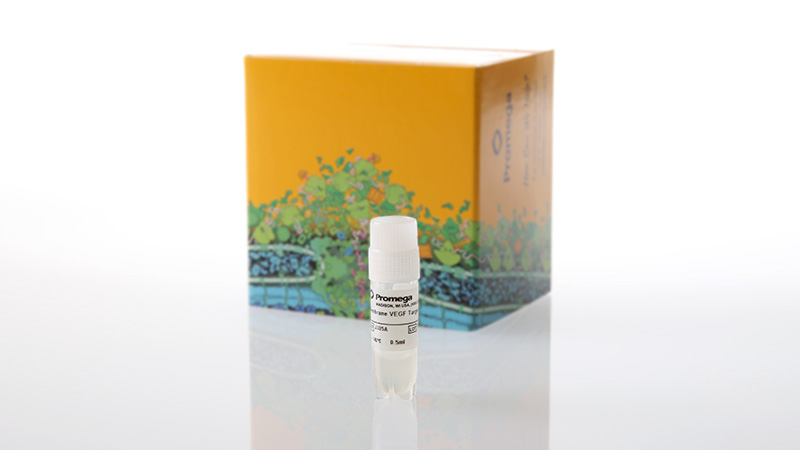

Membrane VEGF Target Cells are provided in thaw-and-use format (Cat.# J3351, J3355). These cryopreserved cells are ready to be thawed for use in assays that measure the effector functions of anti-VEGF blockers.

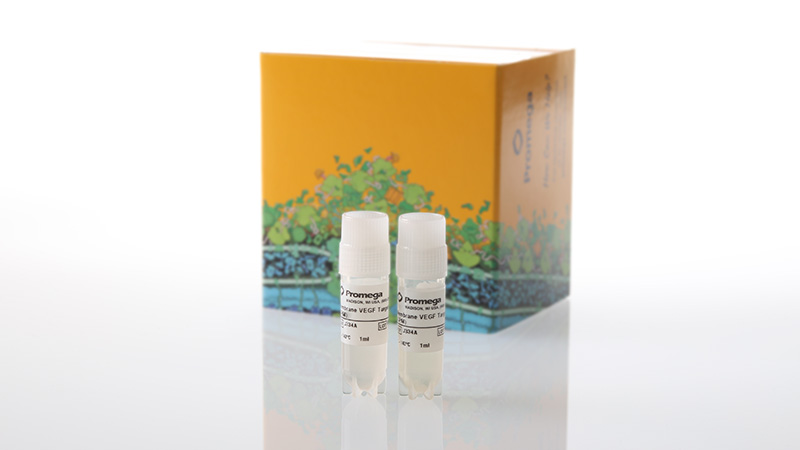

Membrane VEGF Target Cells are also available in Cell Propagation Model (CPM) format (Cat.# J3342). These cryopreserved cells can be thawed, propagated and banked for long-term use.
Workflow
Standardized Reagents Improve Results
- Thaw-and-use format provides significant time and labor savings over traditional methods while reducing variability.
- Easily amenable to high-throughput workflows.
Assay Principle
mVEGF Target Cells used to measure ADCC with the ADCC Reporter Bioassay. Following engagement with the Fc region of a relevant antibody bound to a Target Cell, ADCC Bioassay Effector Cells expressing the FcγR will transduce intracellular signals, resulting in NFAT-mediated luciferase activity that can be easily quantified.
mVEGF Target Cells used to measure CDC with the CytoTox-Glo™ Assay. The assay measures dead-cell protease activity, and the amount of luminescence directly correlates with the percentage of cells undergoing cytotoxic stress.
Assay Performance Data
Accuracy and precision are critical to bioassays and the development of biologics. This assay was developed and prequalified according to ICH guidelines for accuracy and precision, giving it the performance characteristics required for many applications of a bioassay used for antibody drug discovery research and development.
Accuracy: Measure of how close results are to a reference or "target" value.
IntraLab Precision: Measure of repeatability from multiple assays of the same homogeneous sample under the same operating conditions over a short time (same analyst; same lab; same day).
Intermediate Precision: Measure of repeatability of multiple assays of the same homogeneous sample with different analysts or equipment or on different days.
Linearity: Ability of the assay to provide measured values that are proportional to the concentration of the sample.
The ADCC Reporter Bioassay using mVEGF Target Cells Shows Precision, Accuracy and Linearity.
| Parameter | Results | |
|---|---|---|
| Accuracy | % Expected Relative Potency | % Recovery |
| 50 | 47.5 | |
| 70 | 71.3 | |
| 100 | 97.2 | |
| 140 | 148.1 | |
| 200 | 211.8 | |
| Repeatability (% CV) | 100% (Reference) | 2.1 |
| Intermediate Precision (% CV) | 5.0 | |
| Linearity (r2) | 0.9981 | |
| Linearity (y = mx + b) | y = 1.098x – 7.794 | |
| A 50–200% simulated potency series of bevacizumab was analyzed in triplicate in three independent experiments performed on three days by two analysts using mVEGF Target Cells in the ADCC Reporter Bioassay. Bio-Glo™ Reagent was added and luminescence quantified using the GloMax® Discover System. Data were analyzed and relative potencies calculated after parallelism determination using JMP® software. Data were generated using thaw-and-use cells. | ||
The ADCC Bioassay Effector Cells with mVEGF Target Cells measures the activity of the anti-VEGF antibody bevacizumab. mVEGF Target Cells were added to a 96-well assay plate 18 hours prior to the assay. On the day of the assay, ADCC Effector Cells, Propagation Model (Cat.# G7102), ADCC assay buffer and a titration of bevacizumab were added. After a 24-hour induction at 37°C, Bio-Glo™ Reagent was added and luminescence measured using the GloMax® Discover System. Data were fitted to a four-parameter logistic curve using GraphPad Prism® software. The EC50 was 0.72µg/ml and fold induction was 3.8.
A CDC assay measures the activity of the anti-VEGF antibody bevacizumab. mVEGF Target Cells were added to a 96-well assay plate 18 hours prior to the assay. On the day of assay, 10% normal human serum complement and a titration of bevacizumab in CDC assay buffer were added. After a 6-hour induction at 37°C, CytoTox-Glo™ Reagent was added and luminescence measured using the GloMax® Discover System. Data were fitted to a four-parameter logistic curve using GraphPad Prism® software. The EC50 for bevacizumab was 2.94µg/ml, fold induction was 6.6 and specific lysis was 25.6%.
Specifications
Catalog Number:
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Membrane VEGF Target Cells |
J335A | 1 × 0.5ml |
SDS
Search for SDS分析証明書
使用制限
Not For Medical Diagnostic Use.保存条件
Please see the Protocol for detailed storage conditions.
NOT FOR MEDICAL DIAGNOSTIC USE. FOR IN VITRO USE ONLY. BY USE OF THIS PRODUCT, RECIPIENT AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE STATEMENT. If the recipient is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide the recipient with a full refund.
This product may not be further sold or transferred by the recipient and may be used only by the recipient, and then only for (1) research use; (2) discovery, development and monitoring of biologic drugs and vaccines; (3) quality assurance testing of biologic drugs and vaccines; and (4) product release assays for biologic drugs and vaccines. No other commercial use is allowed. “Commercial use” means any and all uses of this product by recipient for monetary or other consideration, including providing a service, information or data to unaffiliated third parties, and resale of this product for any use. Recipient has no right to propagate, modify, derivatize, genetically engineer or otherwise create variations of the cells or genes stably transfected within the cells. In addition, recipient must use luminescent assay reagents purchased from Promega for all luminescence-based assays using this product, or contact Promega to obtain a license for use of this product with reagents other than Promega’s. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH REGARDS TO THIS PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Membrane VEGF Target Cells |
J335A | 5 × 0.5ml |
SDS
Search for SDS分析証明書
使用制限
Not For Medical Diagnostic Use.保存条件
Please see the Protocol for detailed storage conditions.
NOT FOR MEDICAL DIAGNOSTIC USE. FOR IN VITRO USE ONLY. BY USE OF THIS PRODUCT, RECIPIENT AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE STATEMENT. If the recipient is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide the recipient with a full refund.
This product may not be further sold or transferred by the recipient and may be used only by the recipient, and then only for (1) research use; (2) discovery, development and monitoring of biologic drugs and vaccines; (3) quality assurance testing of biologic drugs and vaccines; and (4) product release assays for biologic drugs and vaccines. No other commercial use is allowed. “Commercial use” means any and all uses of this product by recipient for monetary or other consideration, including providing a service, information or data to unaffiliated third parties, and resale of this product for any use. Recipient has no right to propagate, modify, derivatize, genetically engineer or otherwise create variations of the cells or genes stably transfected within the cells. In addition, recipient must use luminescent assay reagents purchased from Promega for all luminescence-based assays using this product, or contact Promega to obtain a license for use of this product with reagents other than Promega’s. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH REGARDS TO THIS PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Membrane VEGF Target Cells (CPM) |
J334A | 2 × 1ml |
SDS
Search for SDS分析証明書
使用制限
Not For Medical Diagnostic Use.保存条件
Please see the Protocol for detailed storage conditions.
NOT FOR MEDICAL DIAGNOSTIC USE. FOR IN VITRO USE ONLY. BY USE OF THIS PRODUCT, RECIPIENT AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE STATEMENT. If the recipient is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide the recipient with a full refund.
This product may not be further sold or transferred by the recipient and may be used only by the recipient, and then only for (1) research use; (2) discovery, development and monitoring of biologic drugs and vaccines; (3) quality assurance testing of biologic drugs and vaccines; and (4) product release assays for biologic drugs and vaccines. No other commercial use is allowed. “Commercial use” means any and all uses of this product by recipient for monetary or other consideration, including providing a service, information or data to unaffiliated third parties, and resale of this product for any use. Recipient has no right to modify, derivatize, genetically engineer or otherwise create variations of the cells or genes stably transfected within the cells except that recipient may propagate and store the cells for long-term use. In addition, recipient must use luminescent assay reagents purchased from Promega for all luminescence-based assays using this product, or contact Promega to obtain a license for use of this product with reagents other than Promega’s. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH REGARDS TO THIS PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.
