DNA IQ™ System

Part Numbers: DC6701, DC6700

customize-this-small

STR解析に使用するDNAの単離システム

  • ケースワークおよび親子鑑定・データベース構築にも使用可能なシンプルなシステム
  • 衣服の染みや液状サンプルなど様々なサンプル種からのDNA抽出が可能
  • ケースワークサンプルで頻繁にみられるPCR阻害物質やその他の不純物を除去

Size

選択製品のカタログ番号: DC6701

Please Enquire
This product is discontinued
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
DNA IQ™ System
100 reactions
Your price:
Change Configuration

Cleaner DNA with a Simple, Rapid System

DNA IQ™ Systemは法医学または親子鑑定で検体となる血液サンプル(またはDNA含有溶液)や残留サンプル(衣類や土)からDNAを効率よく抽出することのできる DNA単離-定量システムです。使用される新しい磁性粒子で、ショートタンデムリピート(STR)解析に使用できるきれいなDNAが単離できます。衣服の染みや液状サンプルなど様々なサンプル種からDNAを抽出でき、データベースサンプル用プロトコールケースワークサンプル用プロトコールが用意されています。
DNAの精製からSTR分析までを簡素化・効率化し、スムーズな分析を実現します。
ユニークなDNA IQ™ Resinは、ケースワークにおける残留 サンプル(衣服や土)の場合、比較的多く含まれるPCR阻害剤やその他の不純物を除去するためにデザインされています。親子鑑定やデータベース構築などに必要とされる膨大な数のサンプルを処理する場合、本システムは一定量のDNAを供給してくれます。本システムは口内スワブ、FTA®ペー パー上の凝固血液サンプル、液状血液については分析済みです(DNA IQ™ Spin Basketsは液状血液の分析には不要です)。組織や髪の毛などのサンプルは、DNA IQ™ Lysis Bufferでは十分に破砕できないため、Proteinase K消化による前処理を必要とします。Casework Extraction KitおよびTissue and Hair Extraction Kit (for use with DNA IQ™) にはProteinase Kやその他の試薬が含まれており、ほとんどの組織・毛髪サンプルを破壊し、タンパク質やその他の構成成分をDNAから分離させます。処理したDNAはDNA IQ™ Systemで精製することができます。
DNA IQ™ Systemは、DNA精製からDNA定量、STR分析への一連の工程を実証するためにPlexor® HY SystemおよびPowerPlex® 16 Systemでテストされています。

本製品で実績のあるサンプル種情報

Biomek用キットは、こちらをご覧ください。


  • 迅速: 数回のステップでPCR阻害物質をほとんど含まない良質のDNAが得られます。
  • 柔軟: ケースワークおよび親子鑑定・データベース構築にも使用可能なシンプルなシステム
  • 効率的: 少量のサンプルサイズにも対応し、フェノールやクロロホルムのような有害な有機溶媒は不使用


【簡易マニュアル】日本語(ケースワーク用プロトコール)

※日本語マニュアルは英語版を翻訳したものですが、常に更新されるものではありません。最新のマニュアルについては英語版(”Product Resources”タブ→“Protocols”)をご覧ください。

ForensicGrade

Promega forensic products are manufactured in alignment with the ISO 18385 standard. This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.

Process Difficult Samples

The unique DNA IQ™ Resin eliminates PCR inhibitors and contaminants frequently encountered in casework (e.g., denim, leather and soil). Even bloodstains as small as 0.1µl can be processed and the DNA amplified to give a complete STR profile. To extract stains, just heat your sample in Lysis Buffer for 30 minutes and centrifuge. Add DNA IQ™ Resin, and wash your sample using a magnetic stand. Thirty minutes later, you have purified DNA.

Some samples, such as tissue and hair, require pretreatment with Proteinase K. In addition, extracting DNA can be difficult from substrates such as denim, envelopes, carpet, etc.

The Tissue and Hair Extraction Kit increases DNA yield from challenging casework samples and substrates. The kit uses Proteinase K and other reagents to remove proteins and other components from the DNA, helping to ensure maximal yield and recovery of DNA from casework samples. The DNA then can be purified using the DNA IQ™ System.

Available Separately

Required Products* Size Cat.#
DNA IQ™ Spin Baskets 50/pack V1225
ClickFit Microtube, 1.5ml (recommended) 100/pack V4745
MagneSphere® Technology Magnetic Separation Stand Two-position, 1.5ml Z5332
Twelve-position, 1.5ml Z5342

 *Required for manual protocol.

Stand-Alone Products Size Cat.#
Lysis Buffer 150ml A8261
2X Wash Buffer 70ml A8271
Elution Buffer 50ml A8281
DNA IQ™ Resin 50ml A8251
8ml A8258
Proteinase K 100mg V3021
DTT, Molecular Grade (Dry Powder) 5g V3151
25g V3155

Want to Automate?

Save time by automating the DNA IQ™ System on the Biomek® 4000 (Beckman Coulter), Freedom EVO (Tecan), or MicroLab STAR (Hamilton) liquid handlers. Follow up with DNA quantification, and import the quantitation data into the STR Normalization Manager Software to automate your PCR amplification setup.

Automate your DNA Extraction

Component volumes in the DNA IQ™ System (Cat.# DC6700 and DC6701) may not be sufficient for automating the process on large platforms. However, the components are available for purchase as stand-alone products. Please contact your local representative to discuss required quantities for your platform and workflow and to schedule the required installation and training services.

製品仕様

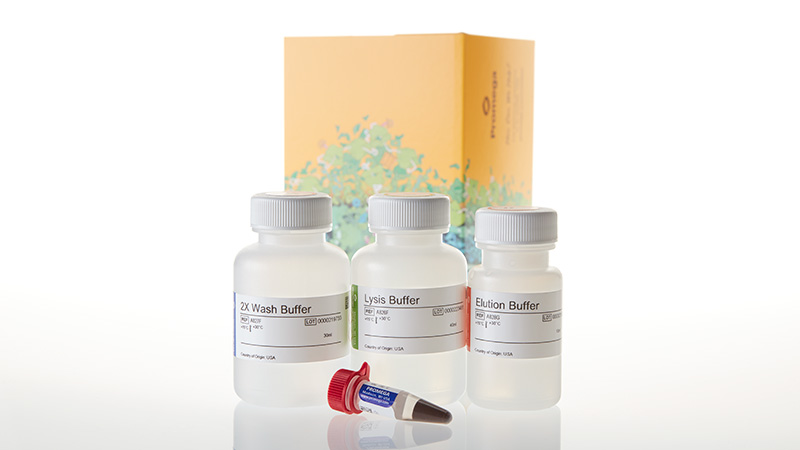

You are viewing: DC6701 Change Configuration

選択製品の構成品内容

Item Part # Size Available Separately

Resin

A825F 1 × 900μl View Product

Lysis Buffer

A826F 1 × 40ml View Product

2X Wash Buffer

A827F 1 × 30ml View Product

Elution Buffer

A828G 1 × 15ml View Product

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

DD

製品仕様

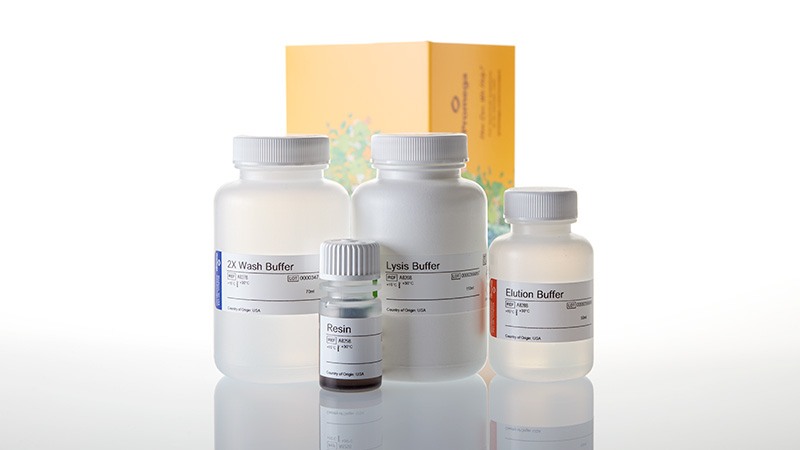

You are viewing: DC6700 Change Configuration

選択製品の構成品内容

Item Part # Size Available Separately

Resin

A825B 1 × 3ml View Product

Lysis Buffer

A826B 1 × 150ml View Product

2X Wash Buffer

A827B 1 × 70ml View Product

Elution Buffer

A828B 1 × 50ml View Product

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

DD
