Measure every Fc effector mechanism: Simplified, integrated workflows for characterizing antibody Fc effector activity. Explore tools from discovery through lot release.

Lumit® FcRn Binding Immunoassay

Part Numbers: W1151, W1152

customize-this-small

胎児性 Fc 受容体との結合性測定

  • 洗浄や移替えが不要:シンプルな " 添加→混和→測定 " だけのプロトコール
  • 1時間以内に結果を取得
  • スケール自在で多検体処理も可能:96または384 ウェルプレートフォーマとに適応

Size

選択製品のカタログ番号: W1151

Please Enquire
This product is discontinued
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Lumit® FcRn Binding Immunoassay
100 assays
Your price:
Change Configuration

迅速でシンプルな FcRn アッセイ

Lumit™ FcRn Binding Immunoassay は新規なホモジニアス(洗浄不要)競合アッセイで、ヒト FcRn(胎児性 Fc受容体)と抗体などのFc タンパク質の相互作用を測定します。本アッセイでは  LgBiT で標識したヒト IgG1  (Tracer-LgBiT) をトレーサーとして使用します。また、ストレプトアビジン - SmBiT に結合した  C末端 ビオチン化 ヒト FcRn (hFcRn-Biotin-SA-SmBiT) を標的として使用します。サンプル中に抗体が存在しなければ Tracer-LgBiT は  hFcRn-SmBiT ターゲットに結合し、最大の発光シグナルを生じます。サンプル中に未標識の IgG が含まれている場合、 FcRn ターゲットへの Tracer-LgBiT の結合に対して競合するため、濃度に依存した発光シグナルの減少が観察されます。

FcRn 機能
胎児性 Fc受容体(FcRn)は、血管内皮細胞や抗原提示細胞(APC)など、さまざまな細胞タイプのエンドソームコンパートメントに発現しています。FcRnは、エンドソーム内で酸性pHで免疫グロブリンG(IgG)抗体の Fc 領域に結合します。子宮内では、FcRn は母親の IgG を発育中の胎児に移す働きをします。成人では、IgGとアルブミンのリサイクルに関与しています。FcRnによるリサイクルは、血清中のIgGおよびアルブミンの長い半減期(数週間)の主な理由です。さらに、治療用抗体が成するための重要なポイントの1つは、半減期の延長であり、これにより有効性が向上するとともに長期の投薬スケジュールにも貢献します。そのため、FcRn-IgG 相互作用は、抗体医薬品開発プロセス全体を通じて最適化および追跡するための重要なパラメーターです。

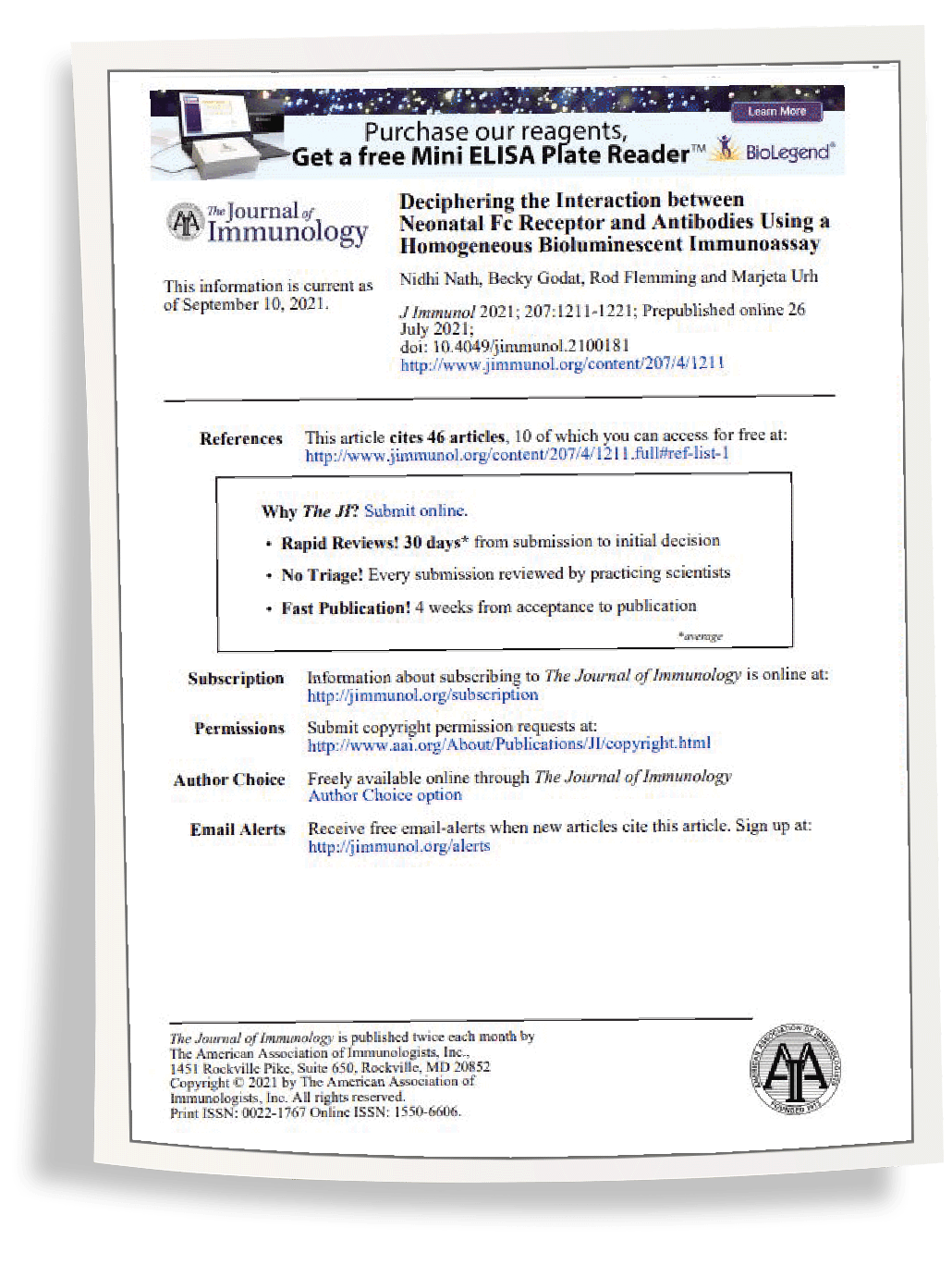

Learn more about the Lumit® FcRn Assay in Nath et al. (2021)

“Deciphering the interaction between neonatal Fc receptor and antibodies using a homogeneous bioluminescent immunoassay” J. Immunol. 207, 1211–21.

Read the Paper
elsa-reader-paper-full-min

シンプルなプロトコル、再現性の高い結果

Lumit™ FcRn Binding Immunoassay は、溶液ベースのホモジニアスアッセイで、洗浄やサンプルの移動ステップを必要としません。

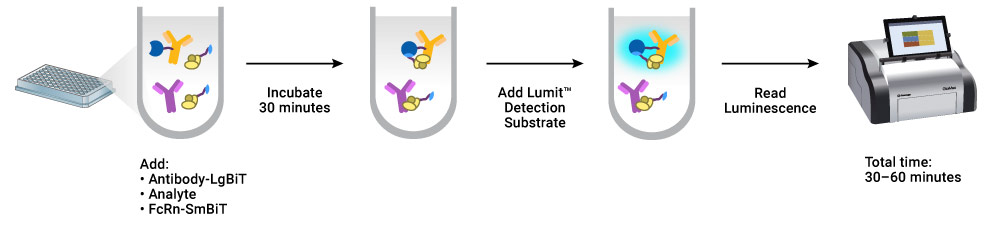

Lumit FcRn Binding Immunoassay workflow diagram.

Lumit™ FcRn 結合イムノアッセイ のしくみ

サンプル中に抗体が含まれない場合、Tracer-LgBiT は hFcRn-SmBiT ターゲットに結合し、最大の発光シグナルが得られます。抗体を含むサンプルでは、非標識 IgG は FcRnターゲットへの結合に対して Tracer-LgBiT と 競合するため、結果として濃度依存的に発光シグナルが低下がします。

Schematic for Lumit FcRn Binding Immunoassay 16519ma

アッセイパフォーマンスデータ

Lumit FcRn Binding Immunoassay detects IG-FcRn binding.

The Lumit® FcRn Binding Immunoassay detects IgG-FcRn interaction. This is a representative standard curve of control antibody plotted as normalized data. Normalized luminescence is calculated by assigning 100% to the maximum bioluminescent signal obtained in absence of an analyte and then calculating percentage drop in signal in the presence of an analyte.

Lumit™ FcRn Binding Immunoassay can detect dose dependent, oxidation-based loss in antibody-FcRn affinity.

The Lumit® FcRn Binding Immunoassay can detect dose-dependent, oxidation-based loss in antibody-FcRn affinity. Panitumumab was incubated with 0.3% H2O2 for 0–24 hours to induce methionine oxidation.

For one of our projects we had been using an SPR assay to measure FcRn binding but observed some immobilization artefacts. Now, we use Lumit for the same project and get better data in less time.

Dr. Alwin Reiter, Senior Scientist Project Analytics at Formycon AG

Lumit® FcRn Assay Users Share Their Experiences

In this webinar, hear how users implemented the Lumit® FcRn Binding Immunoassay in product development.

Watch On-Demand
webinar-banner-icon

製品仕様

You are viewing: W1151 Change Configuration

選択製品の構成品内容

Item Part # Size

Lumit® Detection Substrate A

VB301D 1 × 75μl

hFcRn-Biotin

W109A 1 × 12μl

Streptavidin-SmBiT

W110A 1 × 12μl

Tracer-LgBiT

W111A 1 × 60μl

FcRn Assay Buffer

W112A 1 × 25ml

pH Adjustment Buffer

W113A 1 × 250μl

Control Antibody

W114A 1 × 120μl

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

BB

Please see the Protocol for detailed storage conditions.

パテントおよび免責条項

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.

製品仕様

You are viewing: W1152 Change Configuration

選択製品の構成品内容

Item Part # Size

Lumit® Detection Substrate A

VB301D 10 × 75μl

hFcRn-Biotin

W109A 10 × 12μl

Streptavidin-SmBiT

W110A 10 × 12μl

Tracer-LgBiT

W111A 10 × 60μl

FcRn Assay Buffer

W112A 10 × 25ml

pH Adjustment Buffer

W113A 10 × 250μl

Control Antibody

W114A 10 × 120μl

分析証明書

Search by lot number

使用制限

Not For Medical Diagnostic Use.

保存条件

Please see the Protocol for detailed storage conditions.

パテントおよび免責条項

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.
