Promoter-Driven Control NanoLuc® Luciferase Vectors

Part Numbers: N1441, N1501, N1091

customize-this-small

哺乳動物のプロモーターから発現するNanoLuc®ルシフェラーゼベクター

  • 使用者の実験系にもっとも適したレベルでコントロールレポーターを発現させるため、CMV、PGK、TKプロモーターが選択可能
  • 補正用コントロールとして実験レポーターベクターと細胞にコトランスフェクション
  • Nano-Glo® Dual-Luciferase® Reporter (NanoDLR™) Assay Systemでシグナル測定

Choose a promoter

Size

選択製品のカタログ番号: N1441

Please Enquire
This product is discontinued
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Promoter-Driven Control NanoLuc® Luciferase Vectors
PGK/20µg
Your price:
Change Configuration
プロモーター駆動ホタル (Fluc) およびNanoLuc® (Nluc) 補正用ベクターはNano-Glo® Dual-Luciferase® Reporter (NanoDLR™) Assay Systemを使用する際に実験ルシフェラーゼベクターとともにコトランスフェクションで使用することができます。NanoLuc® ルシフェラーゼは小さく (19.1kDa)、安定なレポーター酵素で、DLR™ Assayのフラッシュタイプのウミシイタケのシグナルよりも最大100倍高感度で、 Dual-Glo® Assayのウミシイタケシグナルの3,000倍以上の感度を有しています。NanoLuc® ルシフェラーゼの明るさの向上により、使用する補正用のDNA量を抑えられるため、アッセイのアーティファクトを低減し実験用Flucレポーターを補正するための補正シグナルが安定します。Photinus pyralis に由来するホタルルシフェラーゼはNanoLuc® ルシフェラーゼを実験レポーターとした場合の補正用として使用します。Flucをコードするluc2 遺伝子は哺乳動物細胞での発現に最適化されています。これらのベクターは変則的な発現を抑えるためにコンセンサスな転写因子結合サイトを最小限に抑えるための改良を加えています。

全てのpGL4 ベクターはこちら
Nano-Glo® Dual-Luciferase® Reporter (NanoDLR™) Assay Systemについてはこちら.


  • アッセイを柔軟にデザイン可能: NanoDLR™ Assay は様々な実験構成に適応。実験用レポーターおよび補正用レポーターとしてそれぞれFlucおよびNlucを使用可能。
  • アーティファクトが低減: Fluc と Nluc レポーターの高い発光レベルによりトランスフェクションする補正用DNA量を低減可能
  • 適切な発現レベルで実験: 様々なプロモーターのオプションから実験系に合った補正用ベクターを選択可能
  • 移行が容易: NanoDLR™ Assayは従来品Dual-Glo® Luciferase Assayよりも感度、パフォーマンス、簡便性が向上したが、プロトコルは同じ。コントロールベクターはすぐに使用可能

【ライセンス】pGL4ベクターシリーズ/NanoLuc /NanoGlo/invivo

About NanoLuc® Luciferase and the pNL Vectors

For use as a genetic reporter, multiple forms of NanoLuc® luciferase have been configured to meet differing experimental objectives. Unfused Nluc offers maximal light output and sensitivity, and NanoLuc®-PEST (NlucP) closely couples protein expression to changes in transcriptional activity and increased signal-to background ratios. When a secreted reporter is preferred, there is NanoLuc® luciferase fused to an N-terminal secretion signal (secNluc). Luminescence is linearly proportional to the amount of NanoLuc® protein over a 1,000,000-fold concentration range, with a signal half-life ≥2 hours when detected with Nano-Glo® Luciferase Assay Reagent.

NanoLuc® luciferase possesses a number of physical properties that make it an excellent reporter protein:

  • very small, monomeric enzyme (171 amino acids; 513bp)
  • high thermal stability (Tm = 60°C)
  • active over a broad pH range (pH 6–8)
  • no post-translational modifications or disulfide bonds
  • uniform distribution in cells
  • emission spectrum well suited for bioluminescence resonance energy transfer (BRET; λmax = 465nM).

NanoLuc® luciferase is made available in a variety of plasmids designed for use in reporter gene assays of transcriptional control and with each of the NanoLuc® forms (unfused Nluc, PEST destabilized NlucP, and secreted secNluc). The different pNL variations are designed for the following:

  • pNL1: cloning of a known or putative promoter region
  • pNL2: cloning of a known or putative promoter region and establishment of a stable cell line through Hygromycin selection
  • pNL3: cloning of a binding site or response element not in need of a basic promoter (such as are present in the pNL3.2.NF-κB-RE vector)
  • Control plasmids for the unfused, PEST-destabilized and secreted Nluc forms also are available.

The pNL vector series uses a pGL4-based backbone for easy sequence transfer from existing plasmids. This backbone design also reduces anomalous results by removing many transcription factor binding sites and other potential regulatory elements. The Nluc gene variations are codon optimized and have had many potential regulatory elements or other undesirable features removed (such as common restriction enzyme sites).

Relative luminescence for firefly and NanoLuc® luciferases expressed from constitutive promoters in multiple cell types.

Relative luminescence for firefly and NanoLuc® luciferases expressed from constitutive promoters in multiple cell types.

Sequence Information

pNL1.1.CMV[Nluc/CMV] Vector GenBank® Accession Number JQ513379 and vector sequence text file.

pNL1.1.PGK[Nluc/PGK] Vector GenBank® Accession Number KM359770 and vector sequence text file.

pNL1.1.TK[Nluc/TK] Vector GenBank® Accession Number KM359774 and vector sequence text file.

製品仕様

You are viewing: N1441 Change Configuration

選択製品の構成品内容

Item Part # Size

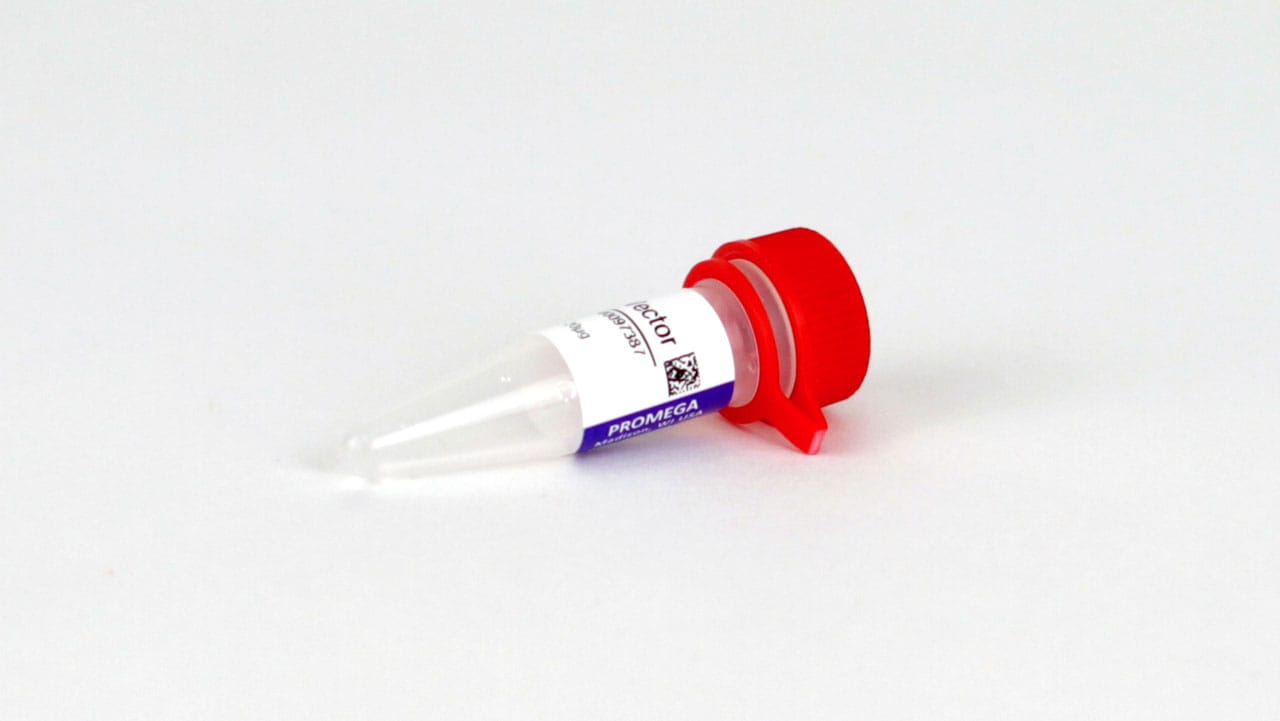

pNL1.1.PGK[Nluc/PGK] Vector N144A 1 × 20μg

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researchers may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researcher may (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence; and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researchers must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives; or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.

製品仕様

You are viewing: N1501 Change Configuration

選択製品の構成品内容

Item Part # Size

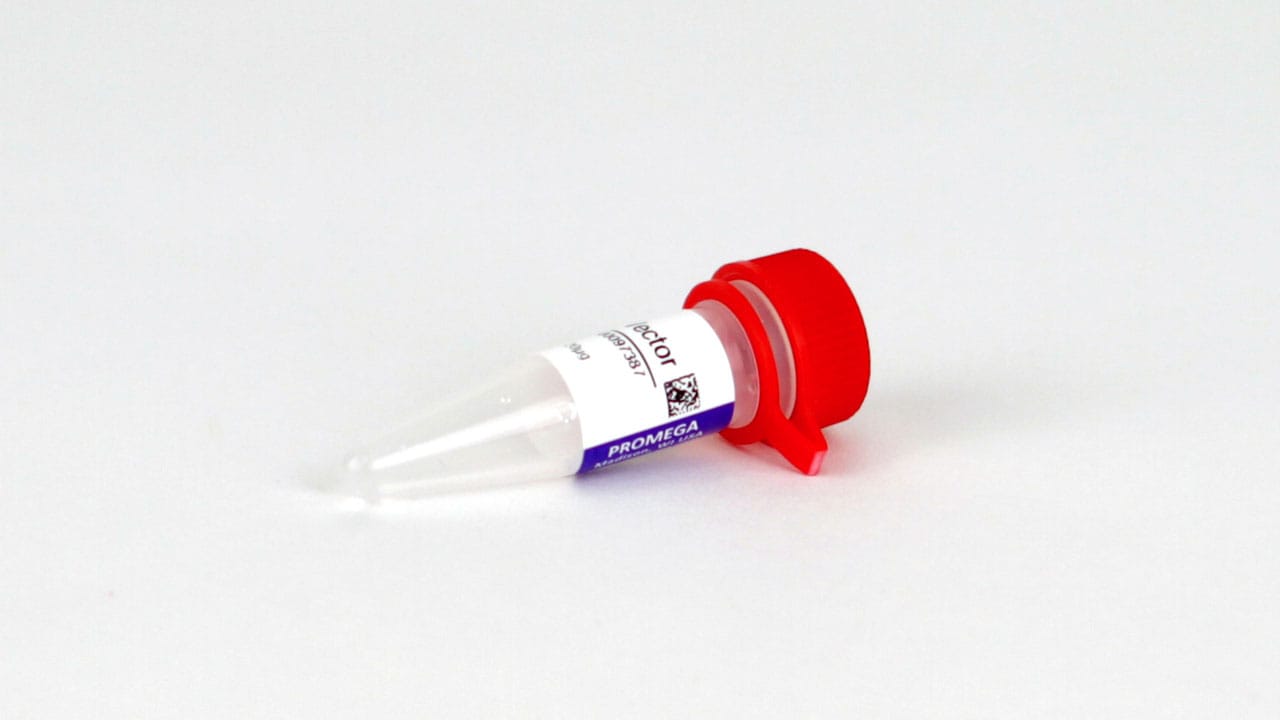

pNL1.1.TK[Nluc/TK] Vector N150A 1 × 20μg

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researchers may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researcher may (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence; and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researchers must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives; or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.

製品仕様

You are viewing: N1091 Change Configuration

選択製品の構成品内容

Item Part # Size
pNL1.1.CMV[Nluc/CMV] Vector N109A 1 × 20μg

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researchers may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researcher may (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence; and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researchers must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives; or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. Nos. 8,557,970, 8,669,103, 9,777,311, 9,840,730, 9,951,373, 10,233,485, 10,633,690, 10,774,364, 10,844,422, 11,365,436, 11,661,623, 11,667,950; European Pat. Nos. 2456864, 2635595, 2990478, 3181687, 3409764; Japanese Pat. Nos. 6038649, 6155424, 6227615, 6374420, 6539689; and other patents and patents pending.
