Consumable Products
| Catalog No. | Product Name | Size | Price | Qty | |||
|---|---|---|---|---|---|---|---|
| CE2300 | Spectrum Compact Buffer | View Specifications | Please Enquire | ||||
| CE2301 | Spectrum Compact Cathode Septa Mat | View Specifications | 10 each | Please Enquire | |||
| CE2302 | Spectrum Compact Cathode Retainer | View Specifications | 4 each | Please Enquire | |||
| CE2304 | Spectrum Compact Polymer4; use with software v.6138000-XX or v.6138200-XX | View Specifications | 4 × 64 wells | Please Enquire | |||
| CE2404 | Spectrum Compact Polymer4; use with software v.6138200-XX or v.6138800-XX | View Specifications | 4 × 96 wells | Please Enquire | |||
| CE2307 | Spectrum Compact Polymer7; use with software v.6138000-XX or v.6138200-XX | View Specifications | 4 × 64 wells | Please Enquire | |||
| CE2407 | Spectrum Compact Polymer7; use ONLY with software v.6138200-XX | View Specifications | 4 × 96 wells | Please Enquire | |||
| CE2507 | Spectrum Compact Polymer7; use ONLY with software v.6138800-XX | View Specifications | 4 × 96 wells | Please Enquire | |||
| CE2308 | Strip Septa Mat, 8-Well | View Specifications | 24 each | Please Enquire | |||
| CE2332 | Spectrum Compact Strip Base & Retainer, 32-Well | View Specifications | 4 each | Please Enquire | |||
| CE2340 | Spectrum Compact Capillary Cartridge, 4-Capillary 36cm | View Specifications | 1 each | Please Enquire | |||
| CE2399 | Capillary Preservation Buffer | View Specifications | 10ml | Please Enquire |
Early Access = This product is available under our Early Access program - Learn More
Catalog (FT) = This product is available under our Catalog (FT) program - Learn More
Spectrum Compact CE System Consumables

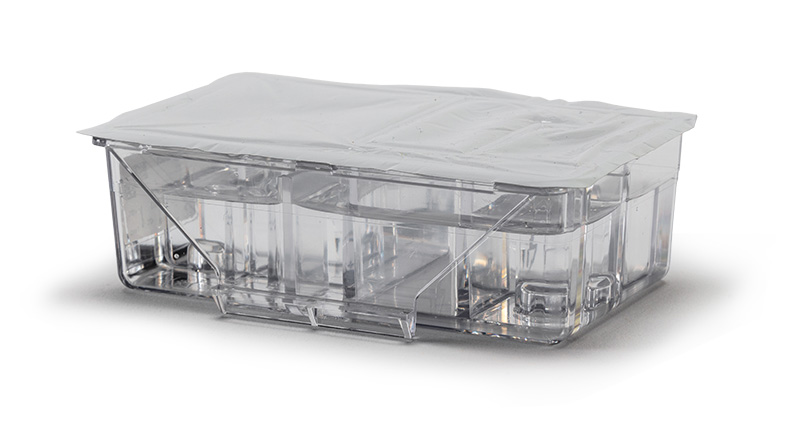

Spectrum Compact Buffer
- Prefilled, ready-to-use cartridges
- 2 each, anode and cathode cartridges
- Each cartridge is sufficient for 320 samples (80 injections)

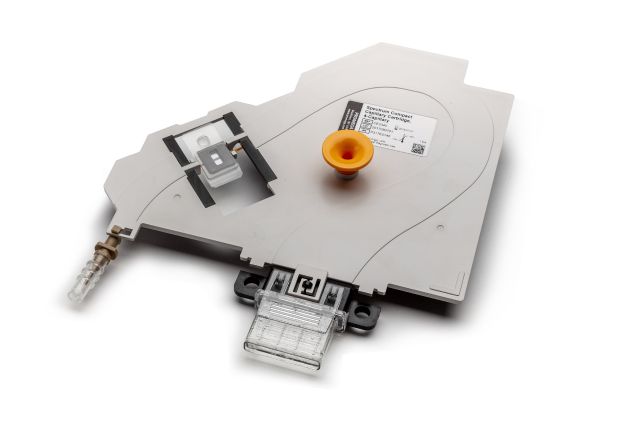

Spectrum Compact Capillary Cartridge
- 4-Capillary, 36cm
- Sufficient for 800 samples (200 injections) or 1200 samples (300 injections), depending on software and hardware installed on the instrument
- No hard-stops

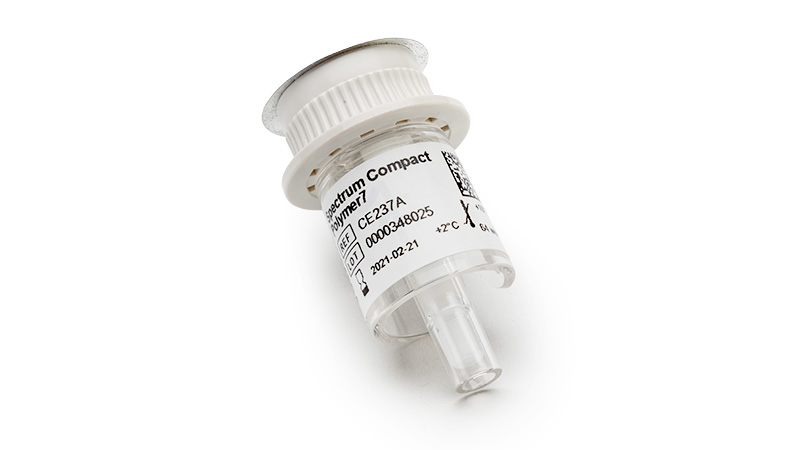

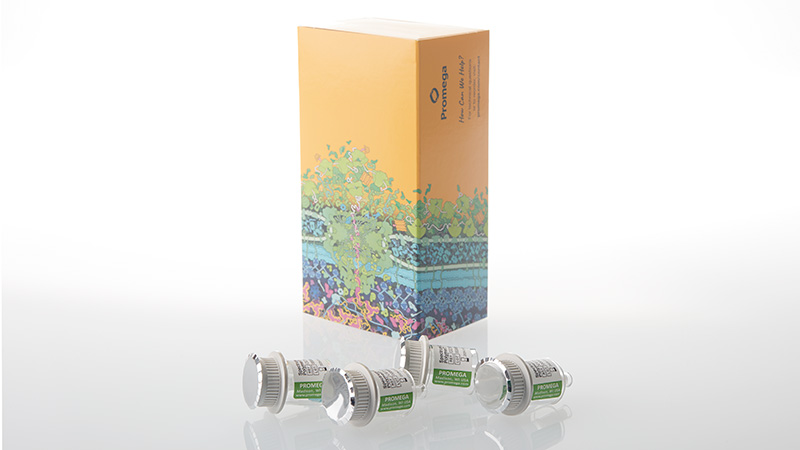

Spectrum Compact Polymer Cartridge
- Available with Polymer4 for fragment analysis or Polymer7 for Sanger sequencing
- Snaps into the polymer delivery unit in a single orientation
- Sufficient for 64 samples (16 injections) or 96 samples (24 injections), depending on software and hardware installed on the instrument
Spectrum Compact Cathode Septa Mat and Retainer
- Specific for the Spectrum Compact cathode buffer cartridge

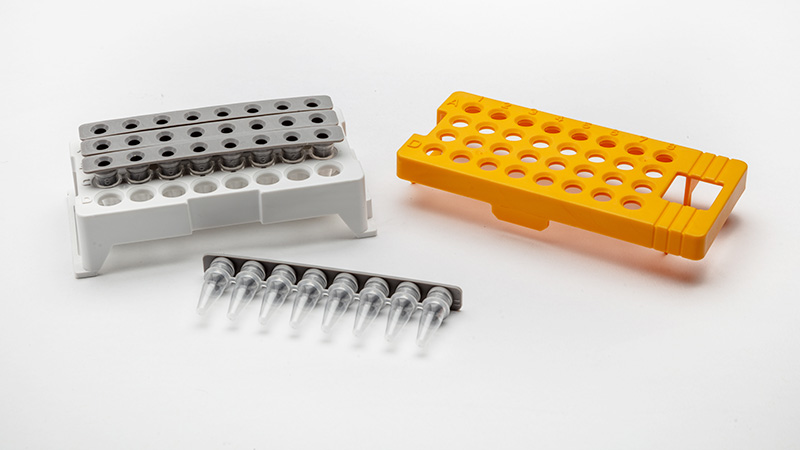

Spectrum Compact Plate Base & Retainer, 32-Well
- Compatible with up to four 8-well strip tubes
Strip Septa Mat, 8-Well
- Silicone to minimize sample evaporation

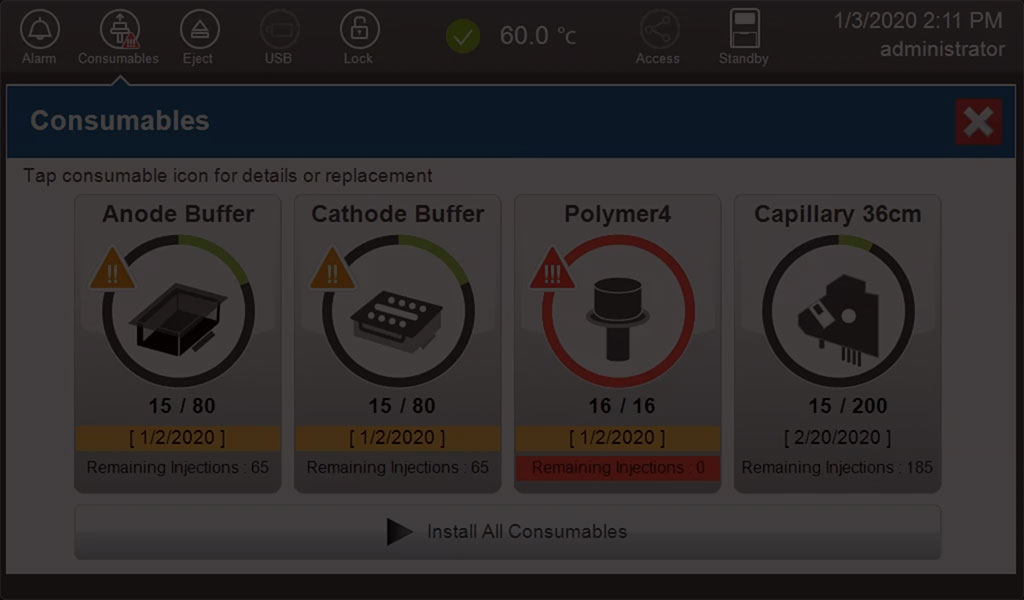

Watch a Video that Shows Installing and Monitoring Consumables on Spectrum Compact CE System
Instrument Software Version and Consumable Compatibility
|
To ensure compatibility with the latest polymer cartridges (CE2404 and CE2507), please check your instrument's system software version. If your Spectrum Compact is not running system software version v.6138800-00 or later, update your instrument to maintain seamless operation. |
|||||
| Software Version |
Polymer Cartridge |
||||
|
CE2507 |
CE2404 |
CE2407 |
CE2307 |
CE2304 |
|
| v.6138800-XX or later |
✓ |
✓ |
Incompatible |
Incompatible |
Incompatible |
| v.6138200-XX |
Incompatible |
✓ |
✓ |
✓ |
✓ |
| v.6138000-XX |
Incompatible |
Incompatible |
Incompatible |
✓ |
✓ |
✓ Compatible: The indicated consumable/software combinations are compatible.
Incompatible: The indicated consumable/software combinations are not compatible.
Protocols
No protocols available
Specifications
Catalog Number:
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Anode Buffer |
CE230A | 2 × 1 each |
Spectrum Compact Cathode Buffer |
CE230B | 2 × 1 each |
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer4 |
CE234A | 4 × 64 wells |
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer4 |
CE244A | 4 × 96 wells |
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer7 |
CE237A | 4 × 64 wells |
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer7 |
CE247A | 4 × 96 wells |
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer7 |
CE257A | 4 × 96 wells |
選択製品の構成品内容
| Item | Part # | Size |
|---|---|---|
Capillary Preservation Buffer |
CE239A | 1 × 10ml |
