Lumit® Immunoassay Labeling Kit and Detection Reagents

Part Numbers: VB2500, VB2010, VB2020, VB2030, VB4050, VB4060

customize-this-small

  • "添加 & 混和" だけの アッセイフォーマット : 洗浄ステップやプレート、ビーズまたは他の担体表面への固定化は不要でアッセイは 30〜90分で完了
  • シンプルな発光ベースの検出
  • 広いダイナミックレンジを備えた溶液ベースの高感度アッセイ

Choose a Product

Size

選択製品のカタログ番号: VB2500

Please Enquire
This product is discontinued
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Lumit® Immunoassay Labeling Kit and Detection Reagents
Labeling Kit/1 each
Your price:
Change Configuration

迅速で効率的な抗体またはタンパク質の標識

Lumit® Immunoassay Labeling Kit を用いれば、抗体やタンパク質を HaloTag®-SmBiTおよびHaloTag®-LgBiTで標識し、 独自の Lumit®イムノアッセイを開発することができます。Lumit® 検出試薬 A および B は、標識した一次抗体を用いた Lumit® イムノアッセイからの発光シグナルを検出するために特別に設計されています。

Lumit® イムノアッセイは NanoLuc®バイナリーテクノロジー(NanoBiT® テクノロジー)をベースにしています。生体分子相互作用研究用にデザインされた構造相補性レポーターである NanoBiTは、安定性と弱い親和性による最小限の自己会合性について最適化された2つのサブユニット、Large BiT(LgBiT)とSmall BiT(SmBiT)で構成されています。これらのサブユニットを相互作用する2つのタンパク質にそれぞれ融合すると、サブユニットが近接し、発光酵素として再構成されることにより相互作用が起こったことが "報告" されます。

Lumit® Immunoassay Labeling Kitと検出試薬の仕組み

Lumit®イムノアッセイは、HaloTag®テクノロジーを使用したSmBiTおよびLgBiTによる抗体およびタンパク質の化学標識に基づいています。分析物の存在下では、2つの抗体が近接し、SmBiT と LgBiT が活性酵素を形成し、分析物濃度に比例した明るい発光シグナルを生成します。

Lumit® 検出試薬 A および B は、標識された一次抗体を使用する Lumit®イムノアッセイからの発光シグナルを検出するように特別にデザインされています。Lumit® Detection Reagent A は生化学的および細胞ライセートを用いる場合に使用されますが、Lumit® Detection Reagent B は特に、ウシ胎児血清(FBS)を含む細胞培養培地からの検出用、および培地と細胞を含む細胞培養ウェルからの検出用として特別に設計されています。

How It Works

HaloTag®テクノロジーを使用した化学標識

標識は 2段階のプロセスで行われ、アミン反応性の HaloTag® Succinimidyl Ester(O4)Ligand は、抗体やタンパク質のリジンアミノ酸の第一級アミンと反応します。次に、HaloTag®リガンドで標識された抗体やタンパク質を HaloTag®-LgBiT または HaloTag®-SmBiT 融合タンパク質とインキュベートして、抗体-HaloTag®-LgBiTまたは抗体-HaloTag®-SmBiTの共有結合コンジュゲートを作成します。

Chemical Labeling Using HaloTag® Technology

シンプルな追加および混合プロトコル、洗浄ステップは不要です!

Lumit® イムノアッセイでは、培地の除去やライセートの移動を必要としません。プロトコールは、標識された抗体へのサンプルの添加、検出試薬の添加、および発光シグナルの読み取りをすべて1つのプレートで行うだけです!
Simple Add-and-Mix Protocol

製品仕様

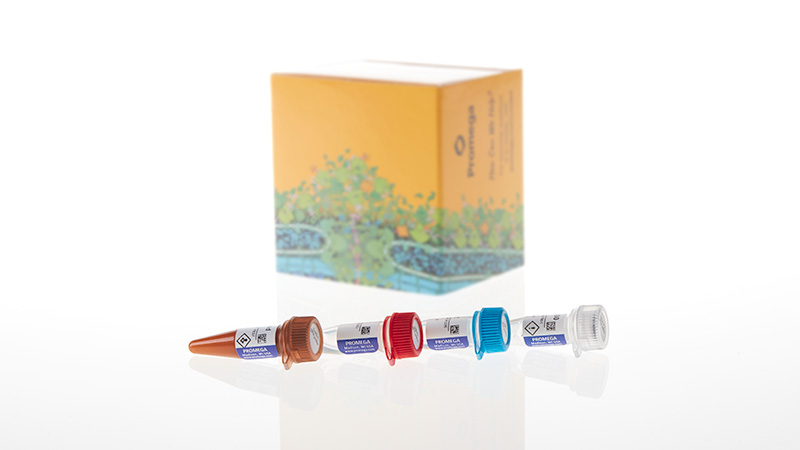

You are viewing: VB2500 Change Configuration

選択製品の構成品内容

Item Part # Size Concentration

HaloTag® Ligand

VB125A 1 × 20μl 20mM

IGEPAL® CA-630

VB141A 1 × 100μl

Lumit® HaloTag®-LgBiT

VB211A 1 × 350μl 20μM

Lumit® HaloTag®-SmBiT

VB212A 1 × 350μl 20μM

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

Lumit® Immunoassay Labeling System Limited Use Label License

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researcher may use this product for research use only and may link Lumit® HaloTag®-LgBiT and/or Lumit® HaloTag®-SmBiT fusion proteins to researcher-supplied moieties. No transfer or commercial use of this product or derivatives is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; and (2) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Notwithstanding the foregoing, researcher may use this product or derivatives in provision of services, information or data to third parties in exchange for consideration, provided that researcher does not transfer the product or derivatives. No other use of this product or its derivatives is authorized without the prior express written consent of Promega.

In addition, researcher must either:
(i) use Lumit®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(ii) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.

U.S. Pat. Nos. 9,873,866 and 10,246,690; European Pat. Nos. 2341134, 2374875, 2395078, 2492342 and 2502990; Japanese Pat. Nos. 5680302 and 5840117 and other patents.

製品仕様

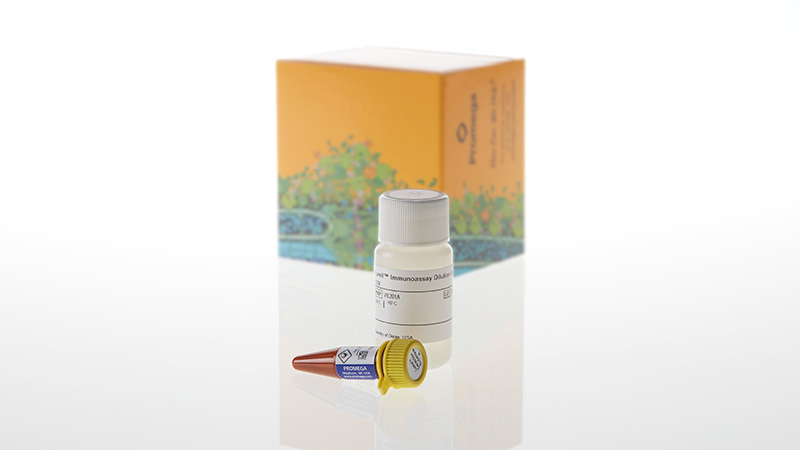

You are viewing: VB2010 Change Configuration

選択製品の構成品内容

Item Part # Size

Lumit® Immunoassay Dilution Buffer A, 10X

VB201A 1 × 10ml

Lumit® Detection Substrate A

VB301A 1 × 200μl

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

製品仕様

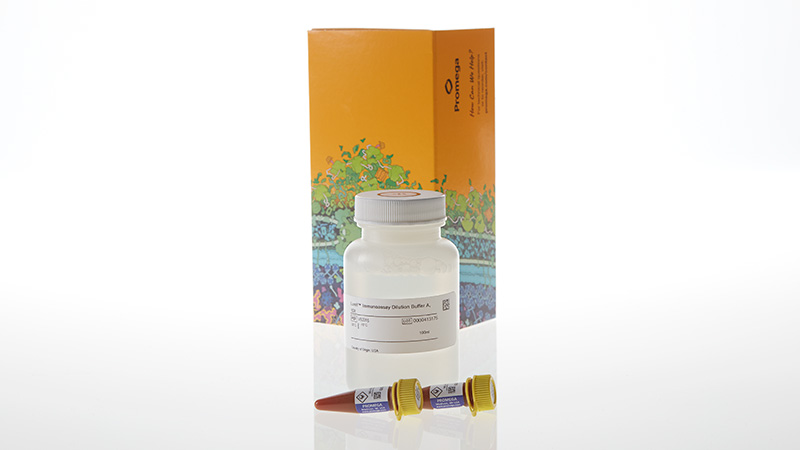

You are viewing: VB2020 Change Configuration

選択製品の構成品内容

Item Part # Size

Lumit® Immunoassay Dilution Buffer A, 10X

VB201B 1 × 100ml

Lumit® Detection Substrate A

VB301B 2 × 1ml

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

製品仕様

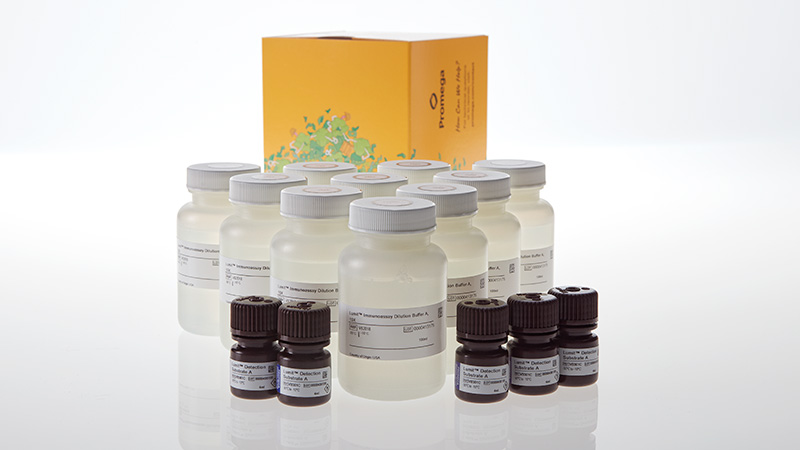

You are viewing: VB2030 Change Configuration

選択製品の構成品内容

Item Part # Size

Lumit® Immunoassay Dilution Buffer A, 10X

VB201B 10 × 100ml

Lumit® Detection Substrate A

VB301C 5 × 4ml

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

製品仕様

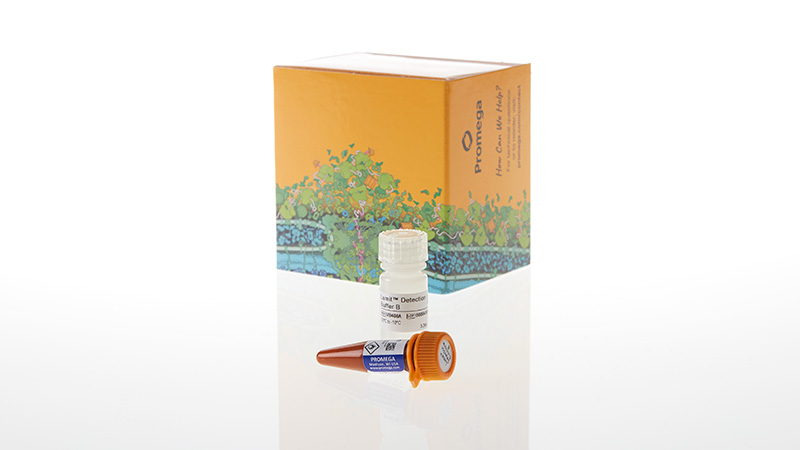

You are viewing: VB4050 Change Configuration

選択製品の構成品内容

Item Part # Size

Lumit® Detection Substrate B

VB405A 1 × 160μl

Lumit® Detection Buffer B

VB406A 1 × 3.2ml

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

製品仕様

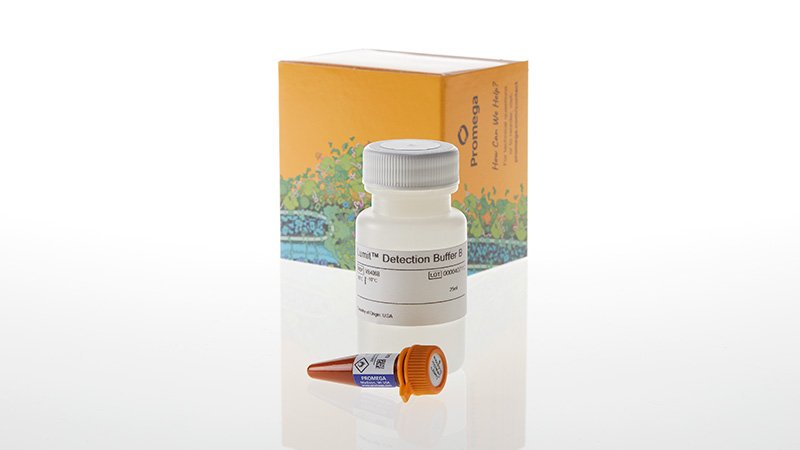

You are viewing: VB4060 Change Configuration

選択製品の構成品内容

Item Part # Size

Lumit® Detection Substrate B

VB405B 1 × 1.25ml

Lumit® Detection Buffer B

VB406B 1 × 25ml

分析証明書

Search by lot number

使用制限

For Research Use Only. Not for Use in Diagnostic Procedures.

保存条件

BB

パテントおよび免責条項

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.
